2023 DENVER TECNIKA ELITE | CNC Bridge Saws

Description

Low hours, under power and can be shown in operation. Bank owned machine. Saw was 180,000 brand new)

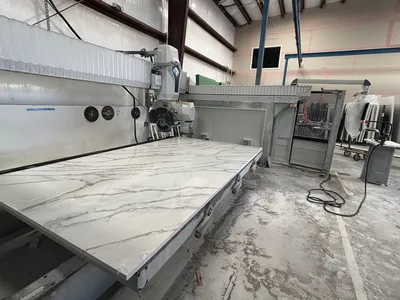

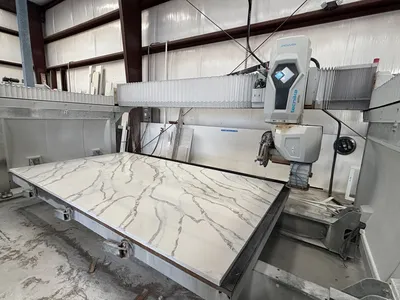

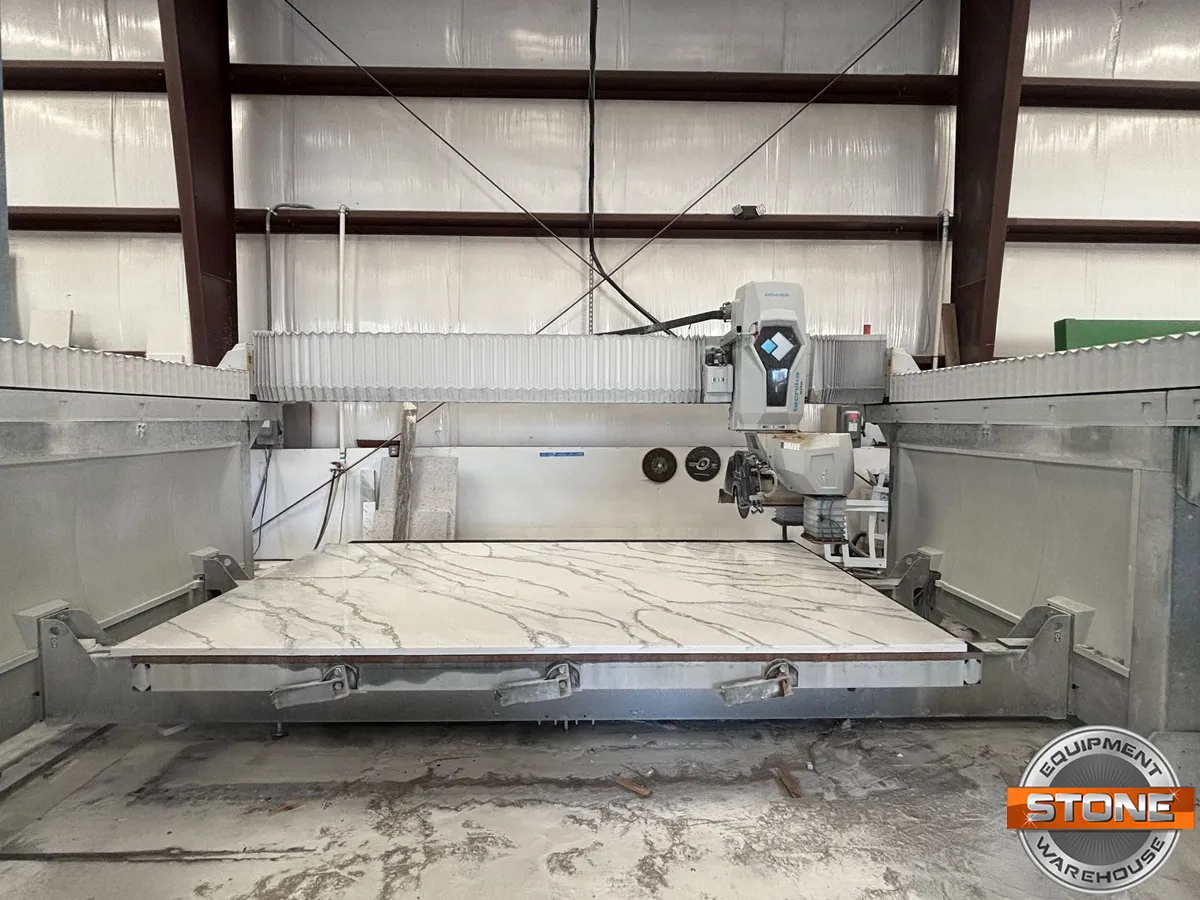

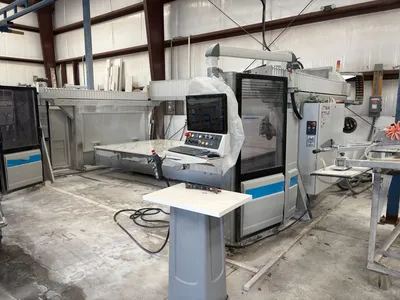

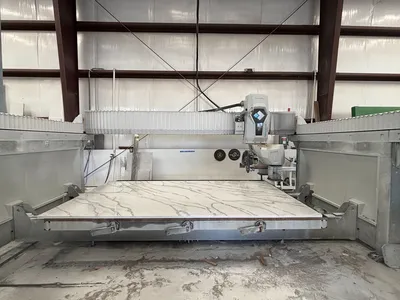

TECNIKA ELITE - MONOBLOC BRIDGE SAWING MACHINE 5 axes, featuring;
-Safety front doors (CE approved) made of noise-depleting ABS material;
-"C" axis: motorized and controlled head rotation from -0° through 360° (+/-3°
extra stroke);
- "A" axis: motorized and automatic inclination of the disc motor till 90°
- "X"."Y"."Z","C" "A" axes are motorized and controlled, programmable and
visualized on the control panel
- NET and USB ports for program updatings

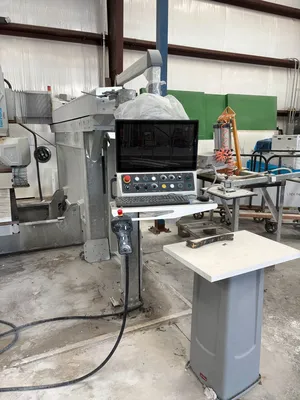

- Precision control unit with 21" colored touch-screen. Interface for work cycles in
manual mode
- X-Motion Vacuum handlilng system: Patented device for optimal cut pieces
nesting.
-ON BOARD TOUCH INTERFACE LOGITOUCH powered by DDX:
CAD Dot to Dot
Osai process controller to monitor processing and machine parameters
Import of single and multi-layer DXF file
Single slab processing and management of remaining pieces on subsequent
Slab thickness detection
Manual and automatic nesting with vein matching (book matching)
Single or multiple, straight and / or curved cuts with continuous X, Y, CA
interpolation and Z (positioning only) 72.000.202C Manual and automatic cuts N 1,0
Cut-out cycle and / or internal corners and with cutter and / or core bit
Stop processing with slab manual movement
Tool path simulation with visualization of the workbench and slab, disc, router bit.
Handling management with manual or automatic slab movement
- Extension to LOGITOUCH touch software for programming the X-Motion
vacuum handling device
- Guard disc Ø max 625 mm (min.Ø 350mm)
- Hp17.5/Kw13 (S6) motor power with adjustable speed up to 6000 rpm,
complete with interchangeable Easypin insert with 1/2 gas right thread, and water
joint for internal lubrication
- Tilting table, hydraulically driven, driven, with rubber covered polyurethane surface (D
GRIP)
- Laser cut marker
- Cross laser to ease the location and storage of the origin position
- Touch-Probe for slab thickness, complete with management software (it works
with max. Ø 500mm disc)
- Automatic Touch-Probe for detection of sawblade diameter, complete with
management software.
- Electric water valve and water flow meter to control the water supply
- Hot zinc coated structure, frame and table
Teleservice system: for remote diagnostics and telephone support
Auto-transformer
UL/CSA certified electrical cabinet
LOGITOUCH: Software upgrade (on board touch interface) to manage free
milling on slab with cylindrical tool (also including flush mount, grooves, flat rebates)
LOGITOUCH software upgrade package for touch interface "Photo on Board"
with onboard camera, protecting case and support pole

Located in South Carolina

Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation
Machine is subject to prior sale.
