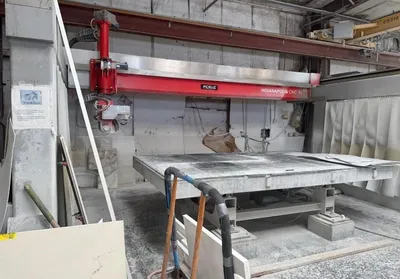

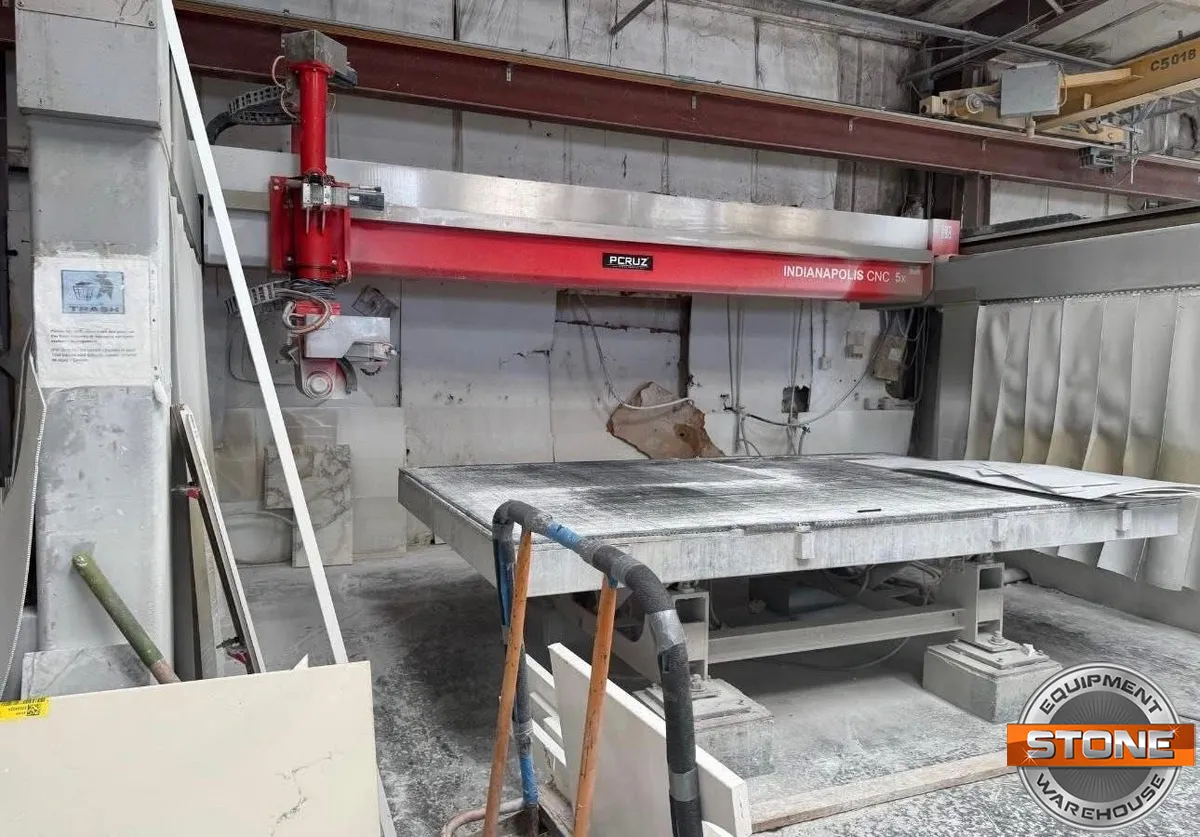

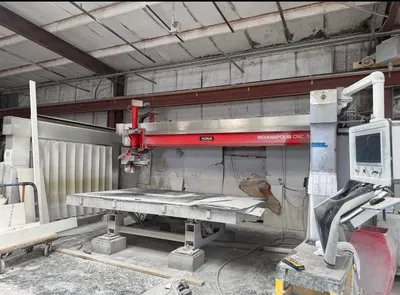

2017 PCRUZ Indianapolis CNC Saw | CNC Bridge Saws

Description

Installation and training is incled, freight from Florida not included.

Blade diameter: 350-400 mm / 13.8-15.7 in.
Main Motor Power: 11 kW / 20 hp
Speed Control: 15 kW / 20 hp Speed Variator
Hydraulic central power: 1.5 kW / 2 hp
Water Consumption: 10-15 l per min. / 2.6-4.0 Gal per min.
Voltage / Frequency: 220 or 480 V / 60 Hz
Working Speeds
“X” axis: 30 m per min. / 98.4 ft per min.
“Y” axis: 30 m per min. / 98.4 ft per min.
“Z” axis: 4 m per min. / 13.1 ft per min.
Useful Axes
“X” axis: 3,300 mm / 129.9 in.
“Y” axis: 2,000 mm / 78.7 in.
“Z” axis: 65 mm / 2.56 in.
Dimensions of the machine
Length: 6,250 mm / 246.1 in.
Width: 3,910 mm / 153.9 in.
Height: 3,100 mm / 122.0 in.
Weight: 6,950 Kg / 15,320 lb

Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
