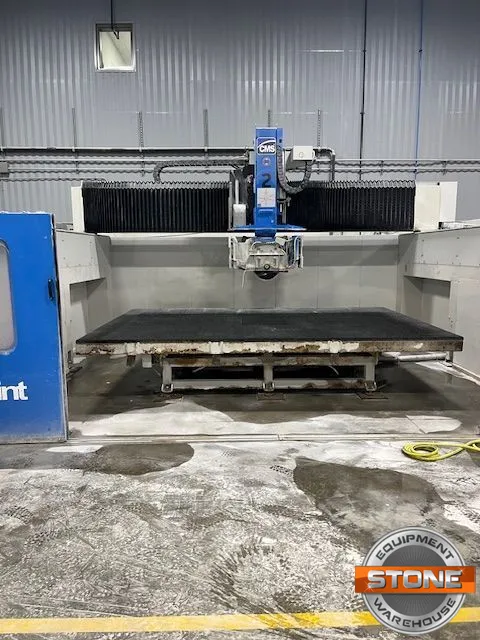

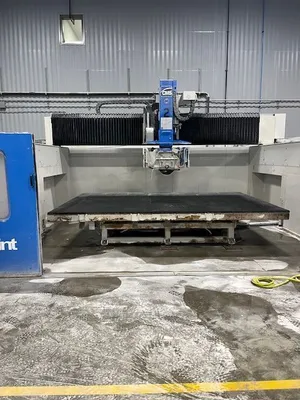

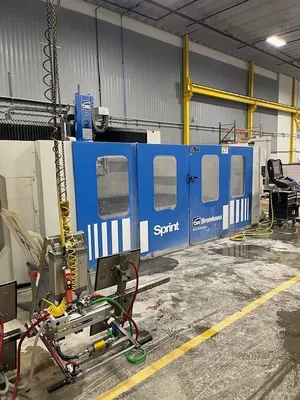

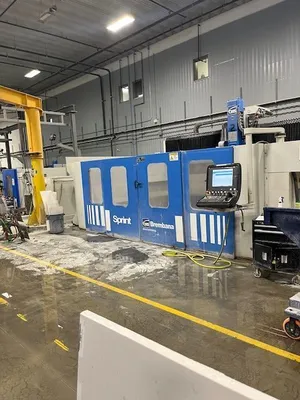

2016 CMS BREMBANA SPRINT | CNC Bridge Saws

Description

Under power, can be seen in operation.

X axis stroke 4250 mm / 167 in
Y axis stroke 2550 ÷ 7200 mm / 100 ÷ 283 in *
Z axis stroke 600 ÷ 900 mm / 24 ÷ 35 in
Disk diameter 350 ÷ 825 mm / 14 ÷ 32 in
Motor 18,5 kW / 25 HP
Motor revolution 0÷5000 rpm (optional 0÷6000 rpm)
Electrospindle (optional) 13 kW / 18 HP - 0÷8000 rpm - ISO 50
Maximum working thickness (with 90° disk Ø 625 mm) 200 mm / 8 in
Maximum working thickness (with 45° disk Ø 625 mm) 130 mm / 5 in
Head revolution (4th axis) ± 270° (540°)
Head inclination (5th axis) +8° -90°
Workbench dimensions 4200x2500 mm / 165x98 in*
Minimum space required for installation 7700x4680x3780 mm / 303x184x149 in

Located in Ontario
