2018 MARMO MECCANICA HTO-R2 | CNC Bridge Saws

Description

Seller has 2 of the same saws and year.

The manual work mode, semi-automatic and automatic, with tilting head from 0 ° to 90 ° with a 45 ° step and rotating from 0° to 180° (optional up to 360°); 5th axis on request;
Several accessories available
Available cutting: 3500 x 2650 mm
Disc: 300 – 500 mm
Power: from 11 kW
GENERAL FEATURES:

STRUCTURE: on steel walls

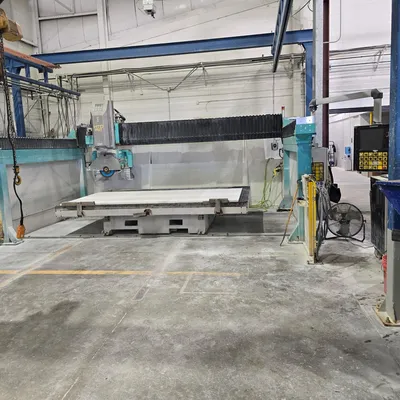

Single beam BRIDGE made of structural steel framing. Bridge translation on linear guides with sliding blocks (4-ways re-circulation). Centralized greasing blocks and water/dust protections. Movement powered by a precision brush-less motor on racks with inclined teeth.
SLIDING OVERHEAD SUPPORT running along the bridge on Linear guides with sliding blocks (4-ways re-circulation). Centralized greasing blocks and water/dust protections. Movement powered by a precision brush-less motor on racks with inclined teeth.

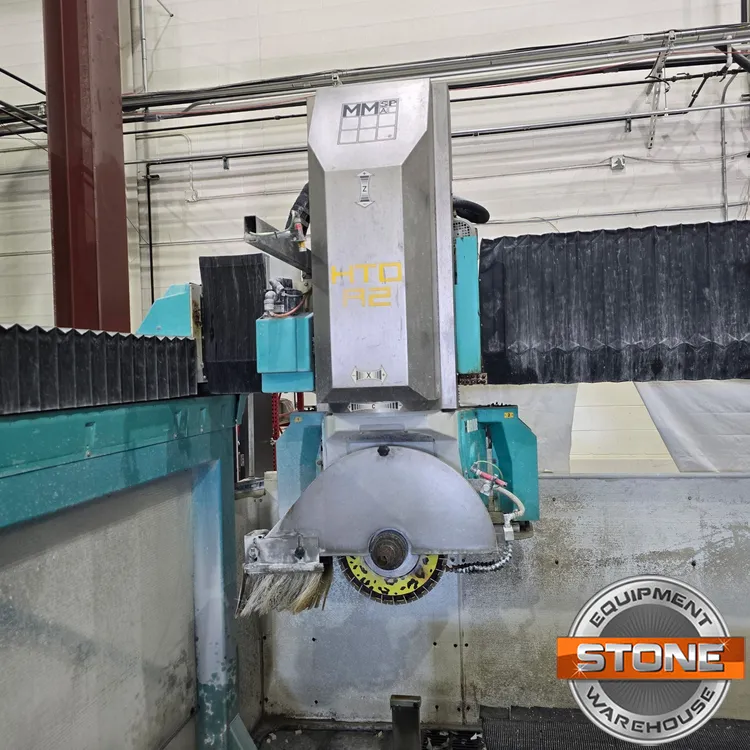

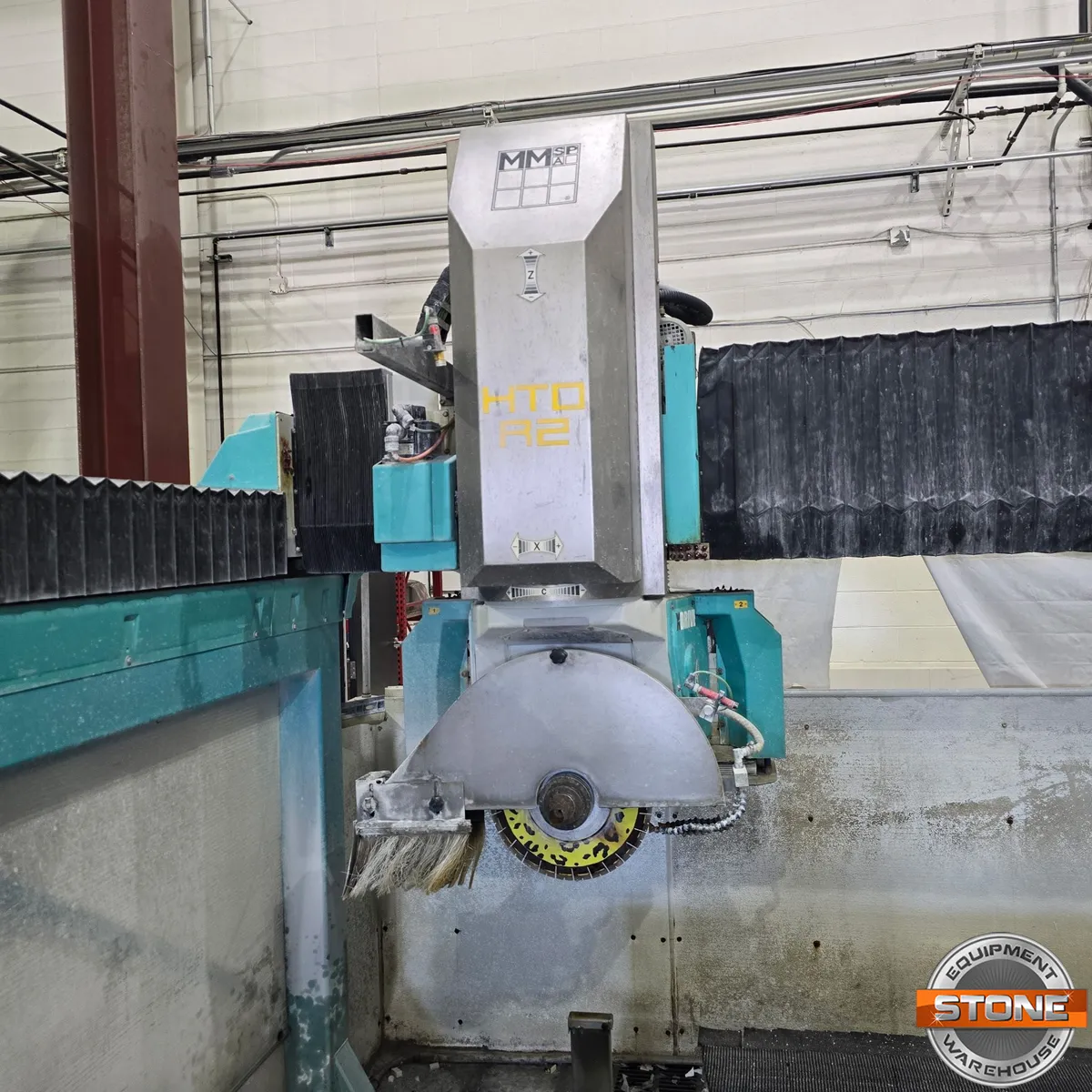

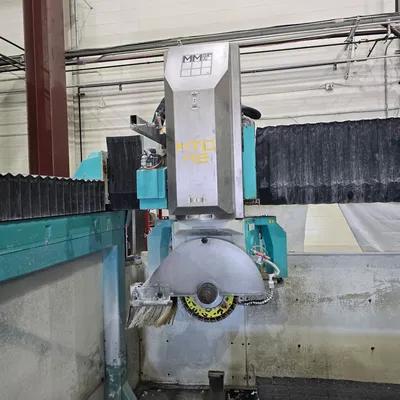

11 kW / 15.1 hp (S6) DISC ELECTRO-SPINDLE
HTO-R2: inclinable from 0 ° to 90 ° with step at 45 ° and rotating from 0 ° to 180 ° (± 3 °) (optional from -3 ° to + 363 °), with motorized and controlled movements.
PROGRAMS:

HTO-R2: multiple measures program, parallel cutting. Vertical and inclined step cutting routine. Differently oriented cuts in manual and automatic mode. Curbed cuts with the disc program. Optional: router bits and candle tools;

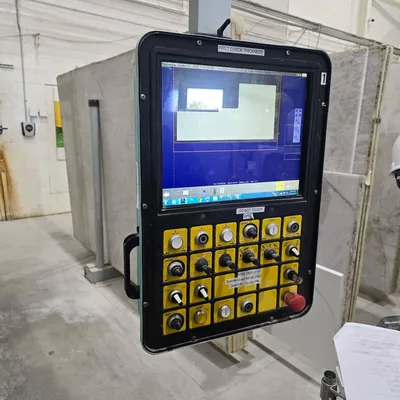

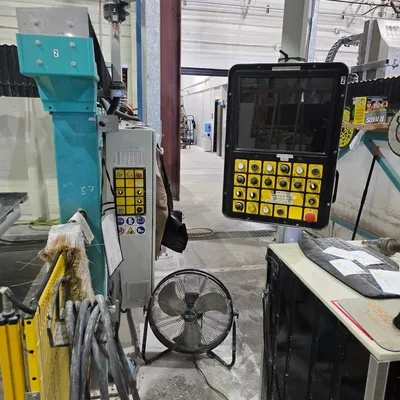

CONTROL BOARD supported by an articulated arm and containing all the necessary controls, 17′ “touch screen” programmer inclusive.
