2022 SASSO M1 5 Axis CNC Saw | CNC Bridge Saws

Description

2022 Sasso M1

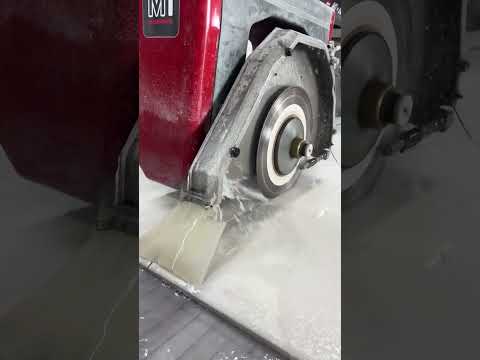

Under power, can be shown in use. 2,035 hours on machine

-25 hp motor, 1/2 gas spindle.

* 5-axis interpolation

* Tilting table

* Tilting head with 0°–90° automatic rotation

* Touchscreen control with Sasso’s user-friendly interface

* Cuts granite, quartzite, quartz, marble, dekton, and porcelain

* Full slab layout and nesting software (Alphacam)

* Reinforced bridge and stainless steel components

ADDITIONAL CROSS-PLATFORM FEATURES
ALPHACAM CAD/CAM WITH COLLISION AVOIDANCE
The M1 stands out with its monoblock design. It uses All Sasso CNC Saws come with state of the art CAD/CAM software. The software is designed to make cutting and milling a simple, fast and productive for your machine operator.

ADVANCED PC CONTROLLER WITH TOUCHSCREEN
Our large touch screen PC controls allow for orthogonal cutting, semi-automatic cutting and parametric cutting from the controls. It allows you to preview the project BEFORE you start cutting. You can access job files, the internet, remote tech support and any other tasks you can do on a computer.

AUTOMATIC LUBRICATION
All of the motion control rails and bearings on the M1 platform have the option for an automated lubrication system that makes maintaining your system easier than ever.

GALVANIZED FRAME PREVENTS CORROSION
Paint chips, peels and rusts over time. All Sasso machinery is hot galvanized to prevent rust and protect your investment.

WIRELESS REMOTE PENDANT
The wireless pendant is used to manually position the head for manual cutting and maintenance.

SLAB THICKNESS PROBE
A precise probe is mounted to the saw head to measure the thickness of the slab. (Very useful if you do a lot of mitering)

TOOL MEASURING SYSTEM
Sasso has built a device that allows you to automatically measure blade diameter AND tool length (lasers don’t do a great job).

FABRICATOR FRIENDLY FEATURES
Integrated tool cabinets, hose bib inside saw for cleaning slabs, under bridge lighting, lovely doors and much more.
