2023 MTE Diamond 11 Vertical Edge Polisher | Back Splash Polishers

Description

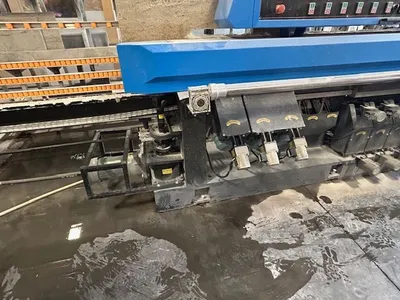

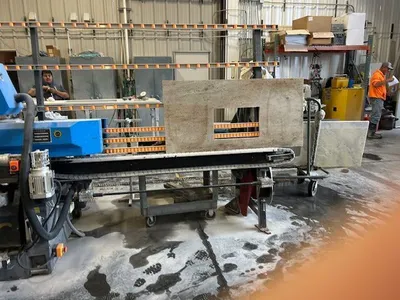

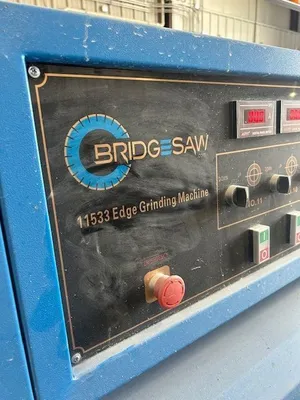

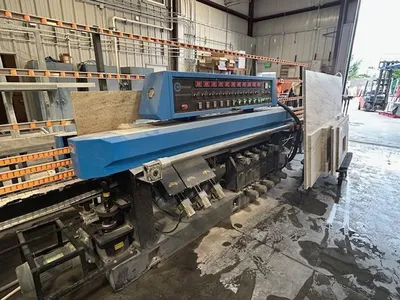

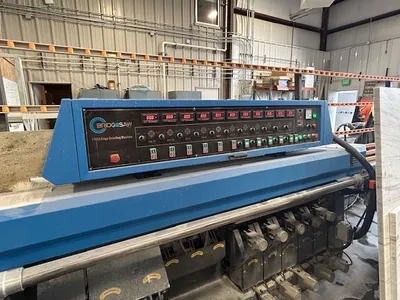

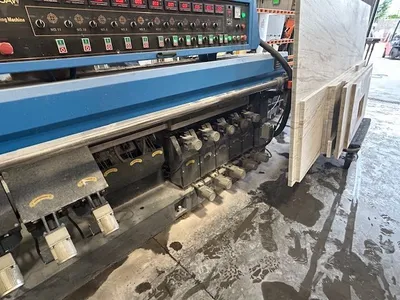

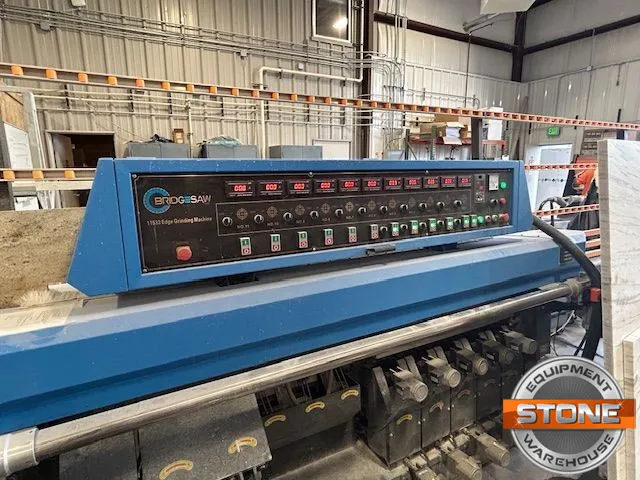

Bridgesaw.com - 2023 Inline Polisher. Fully operational.

TECHNICAL DATA
Number of straight edge polish heads: 4
Number of profiling shape polish heads: 4
Number of heads for 45° chamfering polish: 3
Number of heads for 45° degree cutting and polishing: 1
Processing slab thickness: 4”
Minimum processing size: 7.87” x 3.94” x .59”
Maximum processing size: 78.74” x 78.74” x 4”
Gross power: 58kw, 200a
Water Consumption: up to 40gpm
Minimum working thickness – .4” (1 cm)
Maximum working thickness – 4” (8 cm)
Number of edge spindles – n° 5
Number of upper shaping spindles – n° 3
Number of lower shaping spindles – n° 3
Abrasives wheels diameter – 5” (130 mm)
Belt speed – 0-98.5 inches per minute
Dimensions (L x W x H): 321.44” x 45.18” x 85.02”, approx. 26.75’ x 3.75’ x 7’
Weight: 9920lbs

Located in Colorado

Machine is available for inspection
Machine is sold as is/where is and implies no warranty
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
