2024 COBALM Shop For Sale | Package Deals

Description

2024 Cobalm shop for sale

* CLOTO CNC SAW
SERIAL: 55822310
CHARACTERISTICS:
- Bridge-type CNC Saw, the friendliest on the market, with intuitive functions where the
operator does not need to be a specialist in CNC handling.
- Cutting machine with 5-axis numerical control (X-Y-Z interpolated between each other,
and controlled C-A axes) made and designed to cut marble, granite, porcelain and natural
stones in general, ideal for cutting counter tops, steps, flooring, frame design, reductions,
block designs and much more.
- Fast, precise and reliable due to its resistant heavy-duty construction, with a solid
monoblock structure, and hot galvanized for an extra layer protection against oxidation.
Does not require special preparations to be installed, only available space.
- Programmed and designed to save energy by selectively deactivating the devices that are
not necessary for work.
SPECIFICATIONS:
- 145” X axis. Cutting efficiency of 138”, and with the head at 45o efficiency of 114” cut. Its
movement is on linear guides with ball bearings tempered and ground to 4 contact points
to guarantee greater precision and firmness (all protected by industrial type covers). The
movement is on a precision toothed and inclined guide, powered by a brushless motor
with electronic speed regulation. Speed maximum displacement 472”/min
- 85” Y axis. Cutting efficiency with the head at 45o of 61”. The Y axis determines the
movement of the bridge, its movement is on linear guides with hardened and ground
bearings with 4 contact points to guarantee greater precision and firmness (all protected
by industrial type covers). The movement is on a precision toothed and inclined guide,
powered by a brushless motor with electronic speed regulation. Speed maximum
displacement 472”/min.
- 13.8” Z axis. Clamping chuck in vertical position, the distance between the table and
chuck is 9.4”. The head movement is vertical. Movement on linear guides with tempered
bearings for greater hardness and ground to 4 contact points to guarantee greater
precision and firmness (all protected by industrial covers). Movement on a precision screw
with ball bearings, driven by a brushless motor and with electronic speed regulation.
Maximum travel speed 39”/min.
- C axis 0o ÷ 360o. Rotating movement of the head. With positioning controlled, driven by a
Sumitomo brushless motor and reducer (Japanese) with electronic speed regulation.
- A axis 0o ÷ 90o. Head tilt powered by a brushless motor. Electronic speed regulation.
- Blade motor. Electrospindle with 20 HP power, managed by a vector inverter to manage
the change in the number of revolutions which are between 1000-4000 rpm. Conditioned
with protection cover for a 19.5” diameter blade. 2” shaft, hollowed out for cooling the
tools, all automatically.
- Double continuous water-cooling installation. External circulation to the blade - required
quantity 40 l /min (with recirculation. Internal circulation towards the tool - required
quantity 6 l/min (without recirculation).

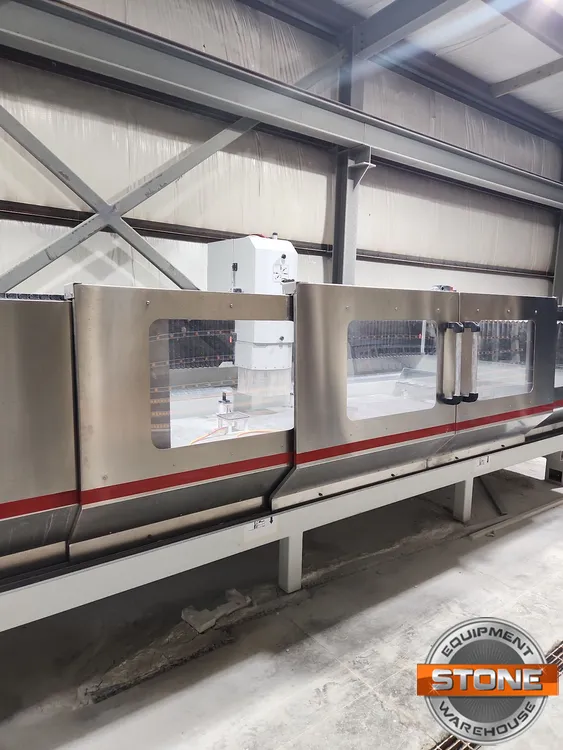

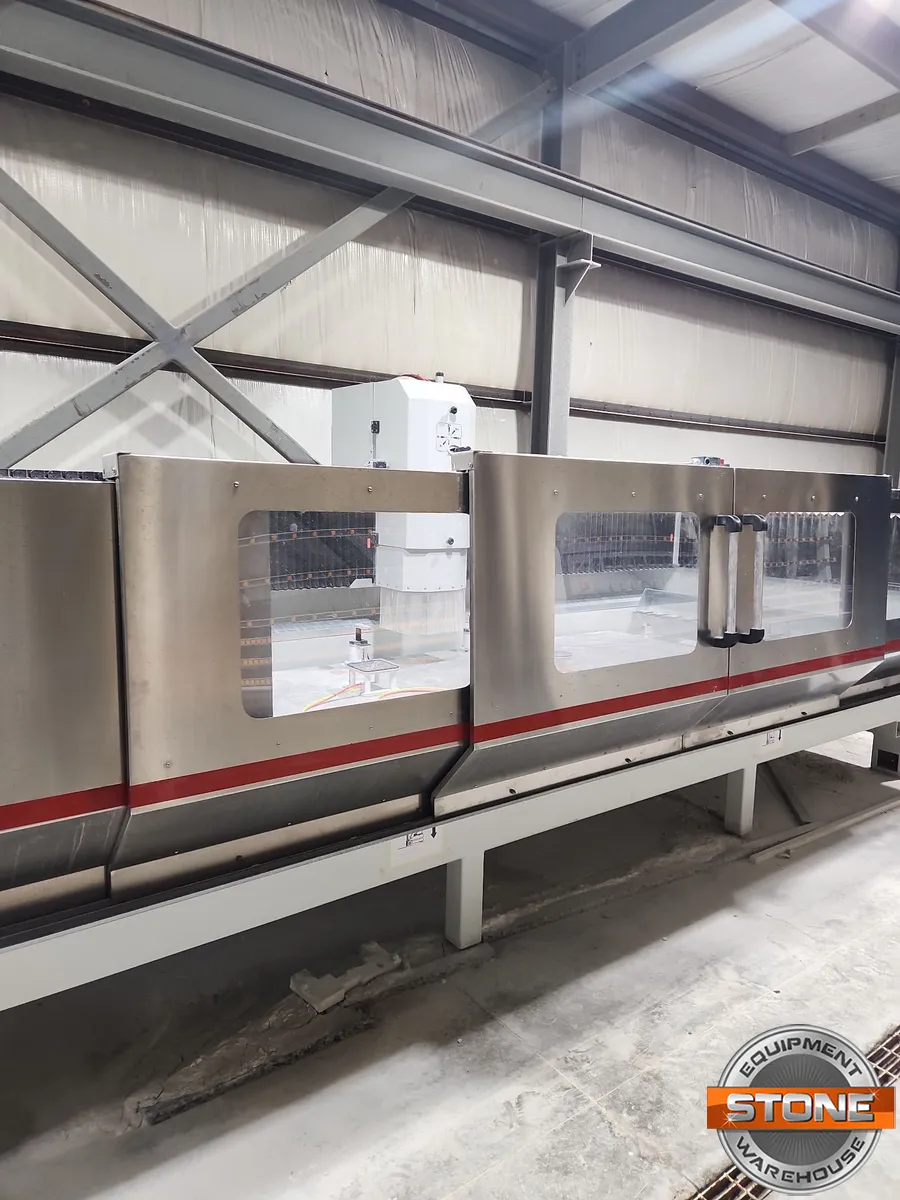

LAQUESIS CNC WORKING CENTER (10 HP Compressor and Dryer)
CHARACTERISTICS:
- CNC Working Center with 3 interpolated axes, for working marble, granite, quartz,
porcelain and natural stone in general, ideal for drilling, milling, recessing, polishing and
cutting flat surfaces and edges.
- Heavy Duty manufacturing, with solid monoblock structure, and hot galvanized for an
extra layer of protection against oxidation.
- Designed and programmed to save energy by selectively deactivating devices that are not
necessary to work.
SPECIFICATIONS:
- X axis 144" Work area 125" using a diameter tool with international standards. The
movement is on a toothed and inclined guide, powered by a brushless motor and with
electronic speed regulation.
- Y axis 64”. 61" work area using a diameter tool with international standards. The Y axis
determines the movement of the bridge, movement on linear guides with hardened and
ground bearings at 4 contact points to guarantee greater precision and firmness
(protected by industrial type covers the movement of the pinions on the toothed and
inclined guide for greater precision and less friction between the parts, powered by a
brushless motor with electronic speed regulation.
- Z axis 15". Determines the vertical movement of the head. Movement on linear guides
with hardened and ground ball bearings at 4 contact points to guarantee greater precision
and firmness (protected by industrial type covers). Movement on precision screw with ball
bearings, Powered by an electronic speed brushless motor.
- Electro-chuck 20 HP spindle with oblique bearings to firmly ensure the attachment of
the tool, rotation speed from 500 to 10,000 rpm controlled by vector inverters. Maximum
tool weight 4.5 kg. With water irrigation for automatic external cooling of the tool and
water irrigation for internal cooling operated by 2 automatic solenoid valves.
- Automatic tool change: 12 positions to store tools on each side of the machine for a total
of 24 tools (they are included to start working on the day of installation)
Vacuum kit, includes: 1 HP vacuum pump, 8 suction cups, 2 fixed pneumatic clamps and
various accessories.
- External control, with IP54 sealing (the special seal to prevent dust or water from
entering) located on the left side of the machine. Fixed console for the operator, with
operating switches and optional USB connector for data transfer.

* EDGE POLISHER MACHINE
Serial: 1123037
DESCRIPTION:
- Model: MB9000
- Total Heads: 9
- Max thickness of granite: 1cm – 6cm
- Wheel size: Φ5”
- Production rate: 197 inches/minute
- Min. stone size: 3” × 60”
- Total power: 32 HP
- Water consumption: 22 gallons/min
- Overall Size: 25’ × 3.5’ × 6.5’

* Vacuum lifter with 4 suction pads
Capacity 1000 kg
- Used for handling fragile or large sized pieces
- Working with compressed air pump multistage
- Working with electric pump model
- Metal structure, with manual tilting from 0/90o
- Excludible suction plates in ny
Gaskets for smooth or rough / uneven surfaces
- Easily replaceable gaskets
- Bhot direction adjustable suction plates
- Vacuum gauge for check control
- Sliding valve with safety device
- Aluminium vacuum tank
- Acustic alarm system

Bag water filtration system

Located in the Northeast

Machine is available for inspection
Machine is sold as is/where is and implies no warranty
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
