GHINES IDRODOS | Dust Collectors

Description

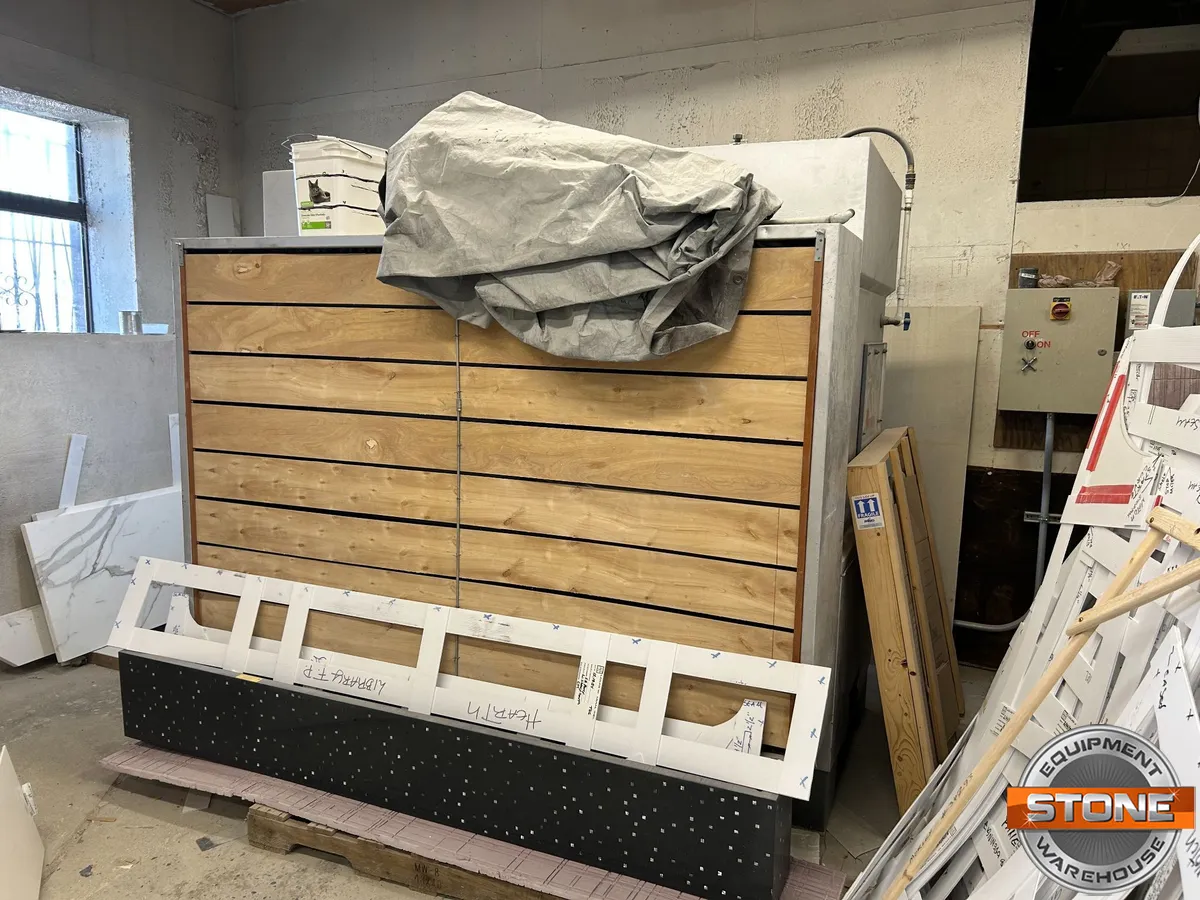

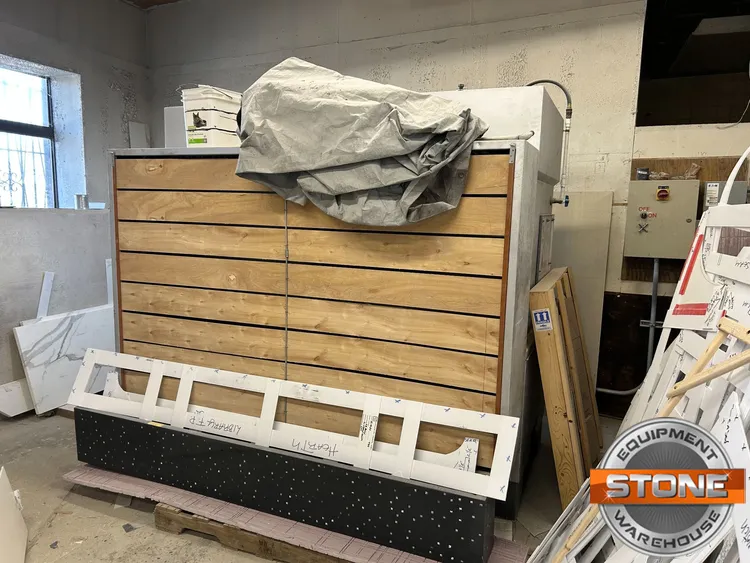

Ghines Indrodos dust wall collection system, rebuilt using all Ghines parts.

IDRODOS is our suction wall with water depuration system for the stone/masonry dust extraction

How does it work?

The extremely strong suction effect of the stone dust collector IDRODOS leads the dust inside the machine,
where it is captured by very fine nebulized water drops, which, after being forced along a labyrinth, adhere to lamellar metallic drop separators.
These muddy water particles then become heavier and fall into the internal tank, from where they are drained off by a continuous water overflow.
Available in 2 versions:
IDRODOS: 3 m suction front
IDRODOS XL: 4 m suction front

WHAT WILL YOU LOVE IN THIS STONE DUST COLLECTOR?

immediately operational, just “plug and play”; no masonry works required;
it can be equipped with 1 or 2 suction arms, that cover an area of a 3 m radius each, incrementing the efficiency by adding local suction points;
the drop separators keep the humidity inside;
equipped with a powerful 7,5 kW motor (10 HP), it grant a REAL suction volume of 9400 Nm3/h
the suction front can be separated from the fan unit, which can be placed outside to gain more space inside your stone workshop

Located in Massachusetts

Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
