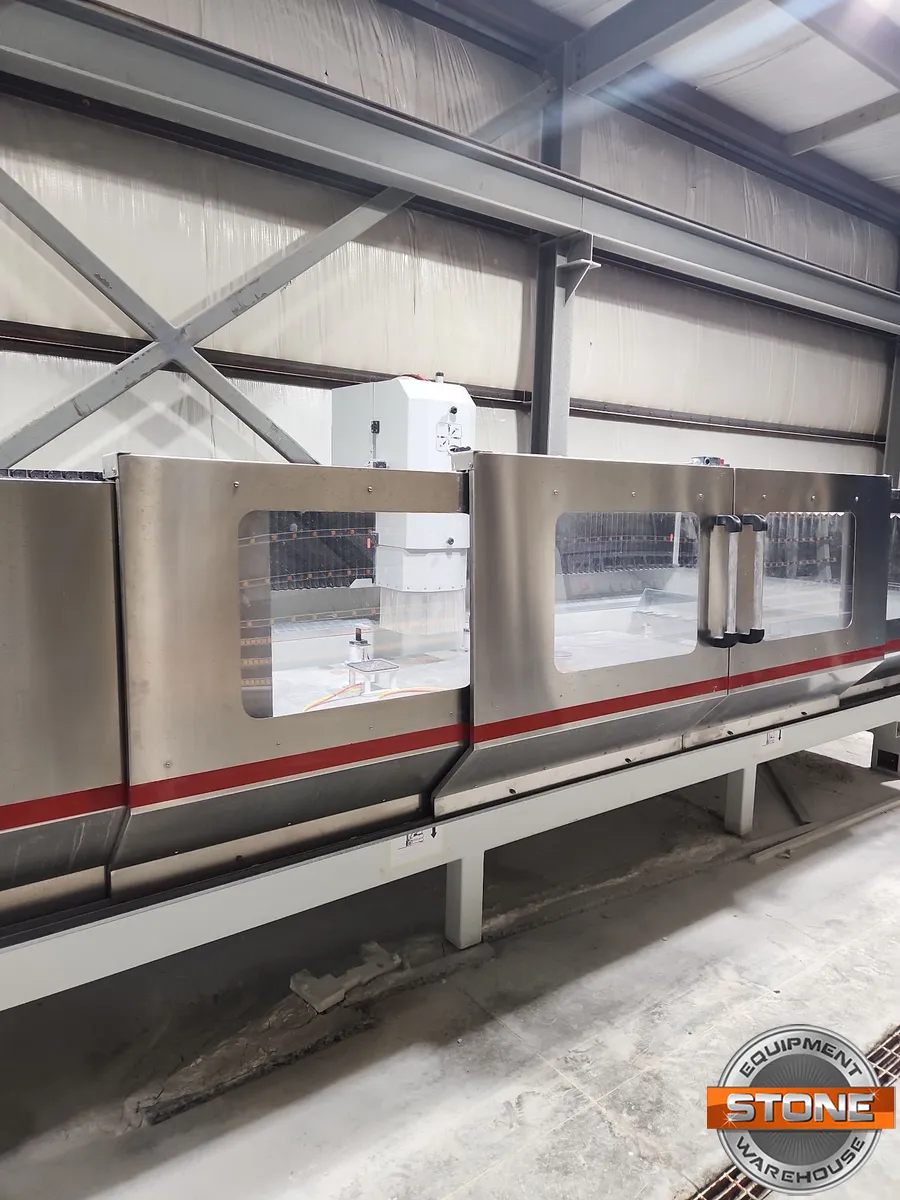

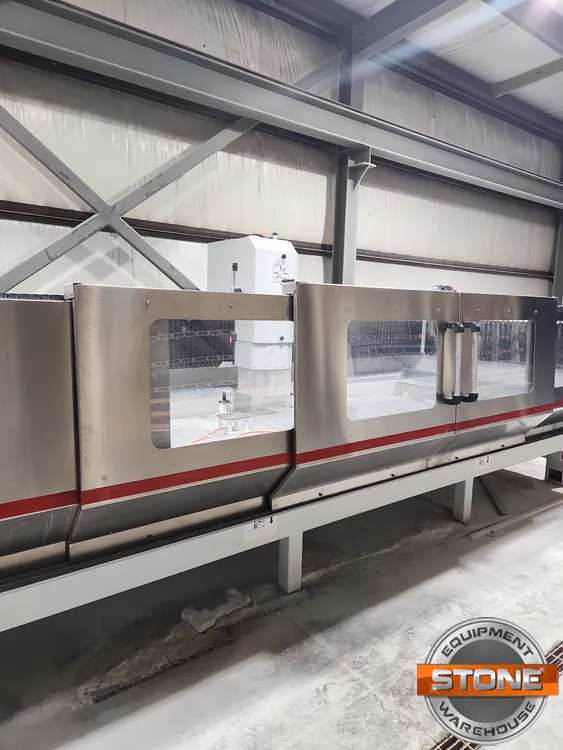

* LAQUESIS CNC WORKING CENTER (10 HP Compressor and Dryer)
Seller is getting put of the business, hence the sale.
CHARACTERISTICS:
- CNC Working Center with 3 interpolated axes, for working marble, granite, quartz,
porcelain and natural stone in general, ideal for drilling, milling, recessing, polishing and
cutting flat surfaces and edges.
- Heavy Duty manufacturing, with solid monoblock structure, and hot galvanized for an
extra layer of protection against oxidation.
- Designed and programmed to save energy by selectively deactivating devices that are not
necessary to work.
SPECIFICATIONS:
- X axis 144" Work area 125" using a diameter tool with international standards. The
movement is on a toothed and inclined guide, powered by a brushless motor and with
electronic speed regulation.
- Y axis 64”. 61" work area using a diameter tool with international standards. The Y axis
determines the movement of the bridge, movement on linear guides with hardened and
ground bearings at 4 contact points to guarantee greater precision and firmness
(protected by industrial type covers the movement of the pinions on the toothed and
inclined guide for greater precision and less friction between the parts, powered by a
brushless motor with electronic speed regulation.
- Z axis 15". Determines the vertical movement of the head. Movement on linear guides
with hardened and ground ball bearings at 4 contact points to guarantee greater precision
and firmness (protected by industrial type covers). Movement on precision screw with ball
bearings, Powered by an electronic speed brushless motor.
- Electro-chuck 20 HP spindle with oblique bearings to firmly ensure the attachment of
the tool, rotation speed from 500 to 10,000 rpm controlled by vector inverters. Maximum
tool weight 4.5 kg. With water irrigation for automatic external cooling of the tool and
water irrigation for internal cooling operated by 2 automatic solenoid valves.
- Automatic tool change: 12 positions to store tools on each side of the machine for a total
of 24 tools (they are included to start working on the day of installation)
Vacuum kit, includes: 1 HP vacuum pump, 8 suction cups, 2 fixed pneumatic clamps and
various accessories.
- External control, with IP54 sealing (the special seal to prevent dust or water from
entering) located on the left side of the machine. Fixed console for the operator, with
operating switches and optional USB connector for data transfer.
