2001 Pro Action 20-Ton | Overhead Crane Systems

Description

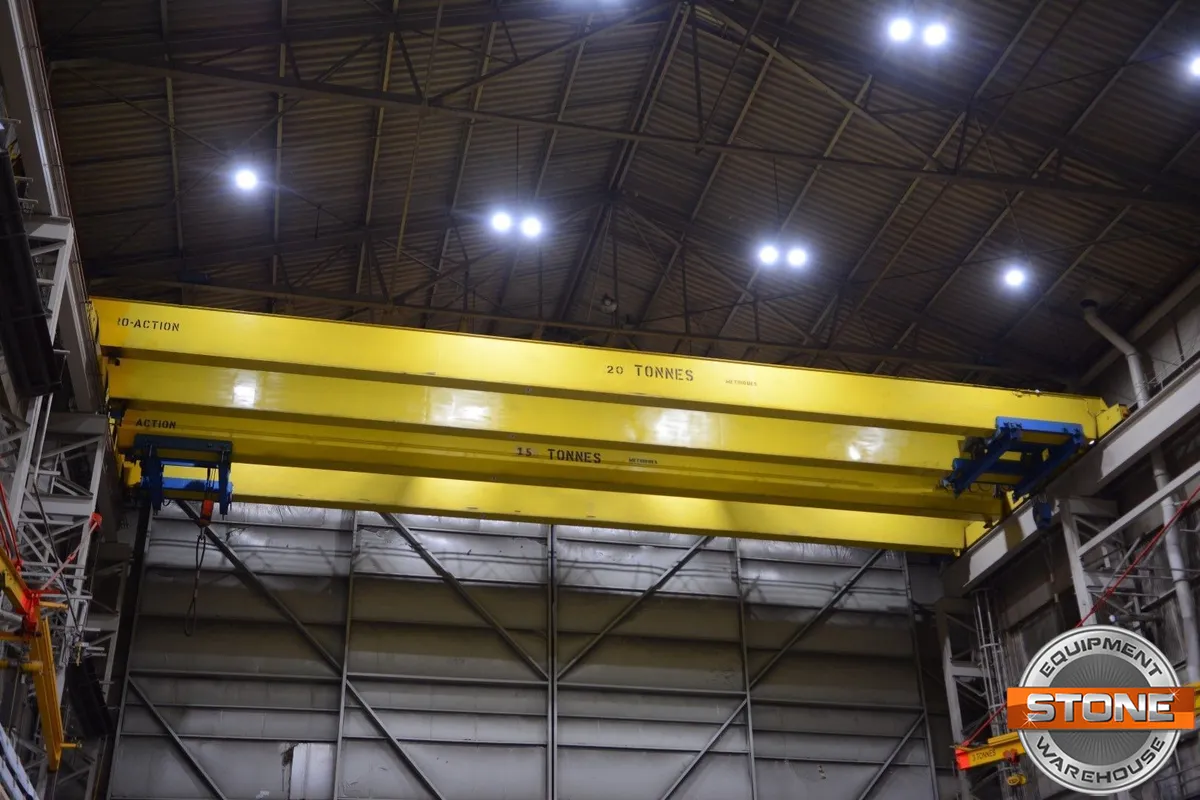

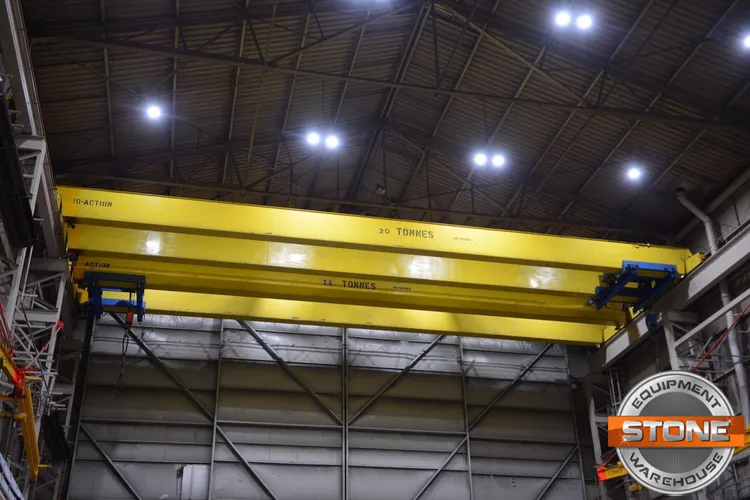

20 TON X 81'-11" OVERHEAD BRIDGE CRANE, 2001 WITH DEMAG HOIST, 38' LIFT
MANUFACTURER: PRO-ACTION
YEAR: MARCH 2001 (Installation date)
SPAN(OVERALL LENGTH): 81'-11"
DISTANCE FROM ENDTRUCK WHEEL CC TO OTHER ENDTRUCK WHEEL CENTER: 81'
OVERALL END TRUCK LENGTH: 191"
LIFTING HEIGHT: 38'
HEIGHT OF BEAM: 4'
2 SPEEDS

EQUIPPED WITH:
1 WIRELESS REMOTE
ALL DEMAGS MOTORS

APPROX. DIMENSIONS OF BEAM:
(1) BEAM 81'-11" LENGTH x 20" WIDTH X 4' HEIGHT
(1) BEAM 81'-11" LENGTH x 20" WIDTH X 4' HEIGHT
(2) ENDTRUCKS : 191" x 10" x 24" H

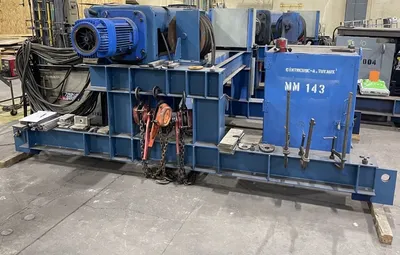

(1) TROLLEY : 95" x 70" x 20.5" H
(1) HOIST : 150" x 112" x 58"

APPROX. TOTAL WEIGHT WITH TROLLEY: 56000 LBS

NOTE: CRANE ALREADY ON THE GROUND. HOIST STORED INSIDE
ANOTHER 15 TON CRANE AVAILABLE SAME SPECS(IF CUSTOMER CHANGE THE CABLE FOR LONGER, IT WILL BE A 20 TON).

Located in Quebec

Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon Request)
Machine is subject to prior sale
