2022 ACHILLI Gold I-TSB | CNC Bridge Saws

Description

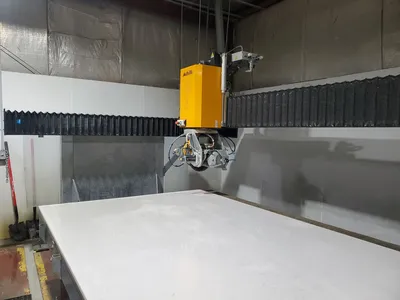

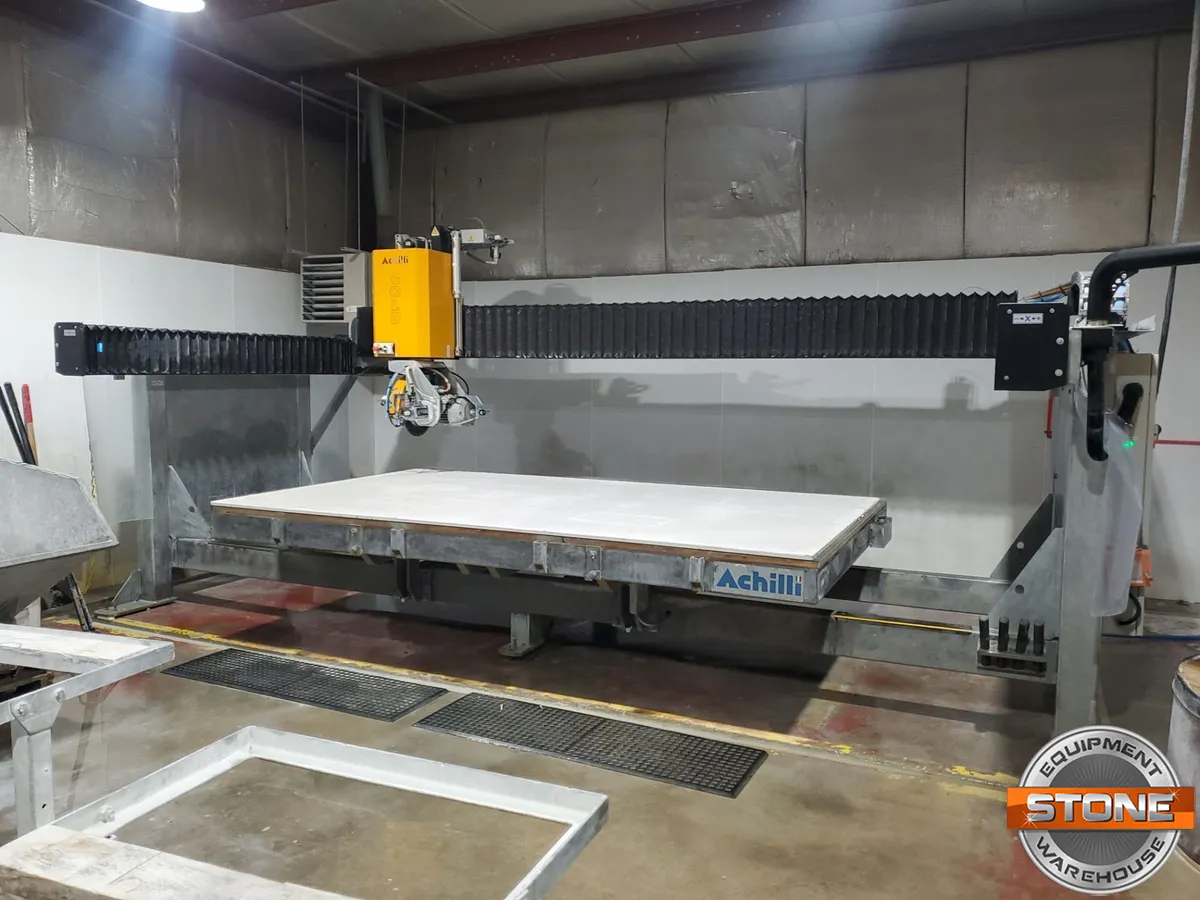

2022 (installed in 2023) Achilli Gold 5 Axis CNC Bridge Saw

-230v 3phase 60hz 60A

The Achilli Gold is a 5 axis CNC controlled saw that features a powerful 20hp motor with variable speed control. The frame is a monoblock design which is constructed using heavy duty steel with a long lasting galvanized finish. This design delivers a long-lasting saw that is rugged and easy to install. The Gold utilizes an extra-large worktable with hydraulic tilt for easy loading and unloading. The cutting head has automatic 360-degree rotation and the blade can be tilted automatically 0- 90 degrees. 1/2 gas spindle for sink cut-outs and drilling. Operating modes include automatic, semi-automatic, and manual. A laser cutting guide and wireless pendant facilitate manual cutting.

Features
Powerful 20 HP main motor 230V 3 phase- Variable RPM 800-3000
Blade diameter 14”-20”
Monoblock hot dip galvanized frame with tilt table
Automatic 360-degree head rotation
Manual blade tilt from 0-90°
Laser alignment and wireless pendant control
Can be controlled in fully automatic mode or semi-automatic mode
X Travel—13’ 1”
Y Travel—7’8”
Z Travel—13”
Install Footprint—19’3” x 11’6”
Y-axis runs on steel guides with bearings
X and Y-axes run on angled rack and pinion
All guides are protected and automatically lubricated

Located in Ohio

Machine is available for inspection
Machine is sold as is/where is and implies no warranty
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
