2005 TERZAGO Rapida | Bridge Saws

Description

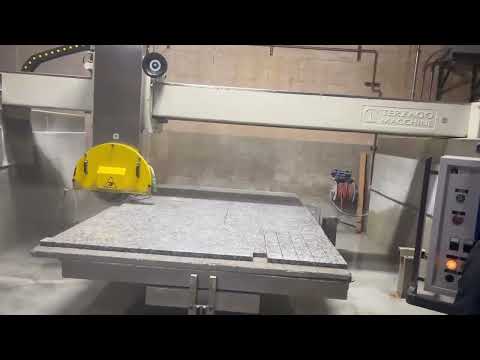

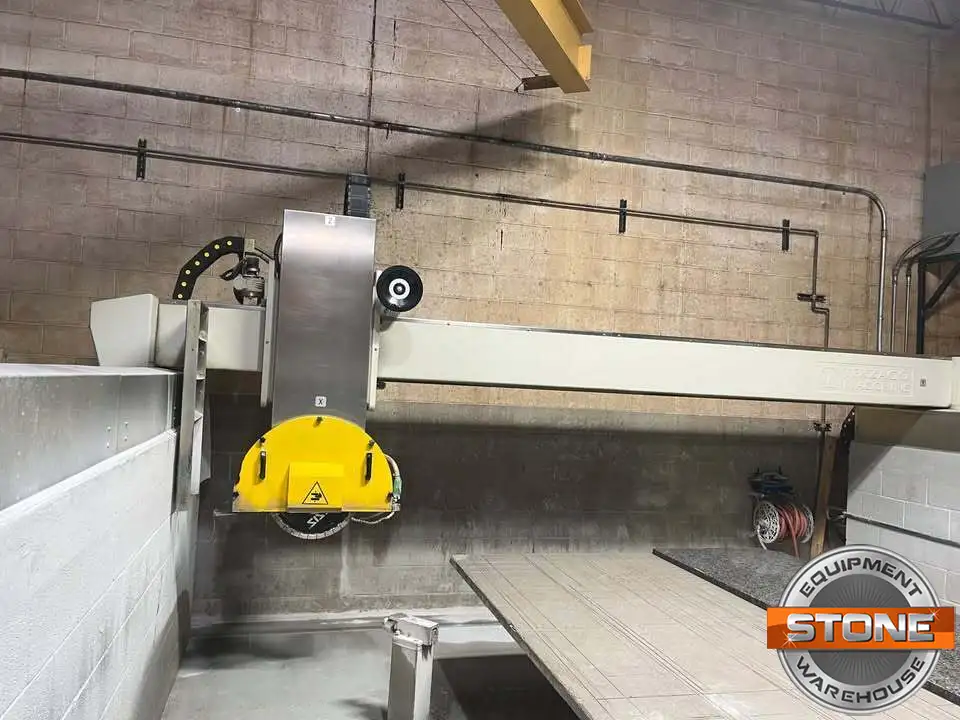

Terzago Rapida

Up to a 28" blade
-30hp motor

Saw is In perfect working condition you can come see it any time.
Cheap to install (steel or cement walls) and easy to use: for marble, granite, quartz and similar stones.
Construction built in cast iron for stability, low resonance and durability.
Motor of reduced dimensions co-axial with blade.
Blade holder slide electrically powered on bearings; guides well-protected from water and dust.
Electric bridge translation on sliding rails protected by everlasting belt and guards.
Mono-axial positioning for bridge translation with encoder.
Vertical movement of head with 2-speed self-braking motor on prismatic guides, controlled by encoder.
Motorised rotating table, with fixed locks every 90° can be blocked in any position
0° – 360°.
Manual tilting head from 0° to 90° to cut marble and granite even in short passes.
The PLC with a graphic touch screen allows programming and interpolation of two axis for concave-convex shaping, contouring, shaving and control of table rotation.
Separate potentiometer for left/right slide speed and operational controls.
Amp-meter to protect from use of tools above accepted tolerances. Electrical cables and cooling water pipes in nylon cable trailer chain.
Soundproofed blade guard.

Located in Michigan

Machine is sold as is/where is and implies no warranty
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
