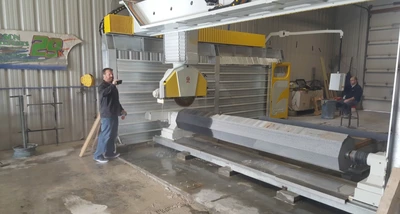

2016 GMM Litox 38 CN2 Dual Table w/ Lathe | CNC Bridge Saws

Description

Machine is currently in operation, and the seller would be willing to help disassemble/load if needed. If training is needed, we could figure something out as well.

Below is the detail for the machine. The seller has every document/drawing that came with machine when purchased new.

Sale includes all the Blades, Tools & Accessories- . Basically everything you need to create whatever you desire, multiple quality blades ranging in size from 48” to 20”. Milling Wheels, CNC Tooling & Adapters. (Quality tooling none of the cheap stuff.)

2016 GMM Litox
-11,335 Hours

Extended Y axis rails length total of 16’ to accommodate a lathe and extra table if desired.
42 hp/32kw motor (s6)
800mm Z stroke
Lathe- maximum workable length of 3600mm.
Two Saw Tables
Two Blade covers
Automatic greasing system
Steel Walls- Hot Dipped Galvanized
Filtered 800W Air Conditioning Unit for electrical panel
Machine is wired 480V 3phase, Step down transformer so it can operate on 240V 3phase, included
Alphacam Ultimate Software License(2022)- used to process 3D pieces.
Profiles & Shapes- Program
Cuts From CAD- Program
Parametric Figures- Program
Digital Camera ( Cuts from Cad) - Program
Work Sequence- Program
Touch probes for tool wear and material thickness

Located in Nebraska

Machine is available for inspection
Machine is sold as is/where is and implies no warranty
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
