2019 OMAG Digitale 5 Axis CNC Saw | CNC Bridge Saws

Description

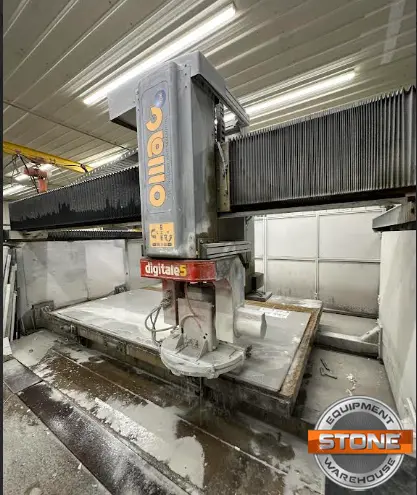

2019 Omag Digitale 5 Axis CNC Saw

-25HP Direct Drive Motor with 1/2 Gas Spindle
-Automatic Probe for Blade Diameter
-Automatic Probe for Material Thickness
-Overhead Camera with Omag Fast Cut Software & Vein Matching Software
-Tilting Oversized 142" x 98" Table
-Vacuum Manipulator System for Movement of Pieces in Cutting Cycle
-19" Touch Screen Control Panel with Remote Pendant
-Automatic Lubrication System
-Temperature Controlled Electronics Cabinet
-Protective Frontal and Rear Doors
-Axis X – Transverse axis stroke 141” / 3.600 mm
-Axis Y – Bridge axle stroke 104” / 2.650 mm
-Axis Z – Vertical axis travel 15,7” / 400 mm
-Axis C – Rotation in axis of the disk 0° + / – 200 °
-Axis B – Disc inclination 0° + 90-
-Overall dimensions 232” x 185” – h 111”

Located in Iowa

Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
