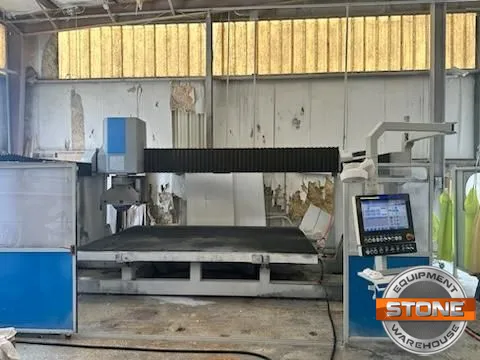

2020 CMS Brembana Kosmos 5 Axis CNC Saw with Milling Attachment -Low Hours!!
-Vacuum Lifter
-1/2 gas spindle for milling and drilling
Blade Diameter 350 ÷ 625 mm / 14 ÷ 25 in
Maximum working thickness (90° Saw unit) 200 mm / 8 in
Motor power 18,6 KW / 23,3 HP
Electrospindle revolution 0÷5000 rpm
Head revolution (C axis) ± 180° (360°)
Head inclination (A axis) 0° - 90°
X axis stroke and speed 3960 mm / 156 in - 30 m/min
Y axis stroke and speed 2450 mm / 97 in - 25 m/min
Z axis stroke and speed 400 mm / 16 in - 7.5 m/min
Workbench dimensions 3600x2500 mm / 142x99 in
Minimum space required for installation 6400*x4110x3020 mm / 252x162x119 in
Overall machine weight Up to 5.100 kg / 11.300 lb
Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation ( quote can be provided upon request)
Machine is subject to prior sale
