2007 KOMO MERIDIAN | Bridge Saws

Description

Sales Representative Name: Justin Luth
Phone Number: 855-456-2588 EXT.  3
Category: Bridge Saws

Year: 2007
Make: Komo
Model: Meridian
Under Power: No
Voltage: 480v 3phase 60hz
Location: Kansas
Asking Price: $25,000.00

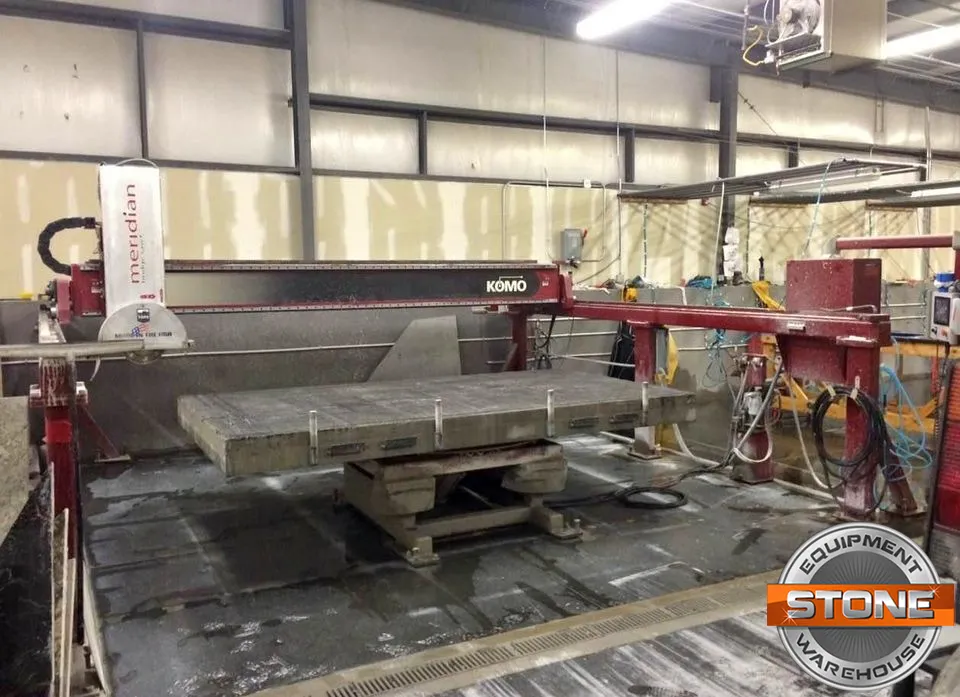

FINANCING AVAILABLE FROM 12 TO 60 MONTHS - ONE PAGE APPLICATION & 3 MONTHS BUSINESS BANK STATEMENTS REQUIRED.  CLICK ON FINANCING TAB ON HOME PAGE FOR FURTHER INFORMATION OR CALL US AT 855-456-2588 2007 Komo Meridian Bridge Saw

Specifications:
Made in the USA
Weight – Approximately 8000 lbs
Electrical Saw – 480 V, 3 Phase, 28.6 Amps
Electrical Table – 480 V, 3 Phase, 3.5 Amps
Arbor Motor HP: 20 HP up to 1200 RPM
Max Blade Size: 24″
Blade Tilt: Up to 50 degrees
Table Size: 132″ x 72″
Max Part Size: 140″ x 80″
Table Tilt: 80 degree max tilt
Table Rotation: 360 degree rotation with 8 45 degree hard locks and variable degree air caliper brakes
Table Motor: 2HP hydraulic motor (240/480V, 3 Phase)
Feed rate: x axis – 360 ipm, y axis – 720 ipm, z axis 30 ipm
Axis Travels: x axis – 144″, y axis – 157″, z axis 14″
Control System – Omron PLC control and inverter system
Drive System: x axis – Dual rack and pinion, y axis – Rack and pinion, z axis – precision ball and screw.
Additional Details:
Table saw has light use and has been well maintained. No longer needed as the business has phased out of stone cutting part of business.



Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
