2003 PARK INDUSTRIES EAGLE II | Block Saws

Description

Sales Representative Name: Justin Luth
Phone Number: 855-456-2588 EXT.   3
Category: Block Saws

Year: 2003
Make: Park Industries
Model: Eagle II
Under Power:n Yes
Voltage:
Location: Utah
Asking Price: $125,000.00
FINANCING AVAILABLE FROM 12 TO 60 MONTHS - ONE PAGE APPLICATION & 3 MONTHS BUSINESS BANK STATEMENTS REQUIRED.  CLICK ON FINANCING TAB ON HOME PAGE FOR FURTHER INFORMATION OR CALL US AT 855-456-2588 2003 Park Industries Eagle II
*Video of saw in operation*

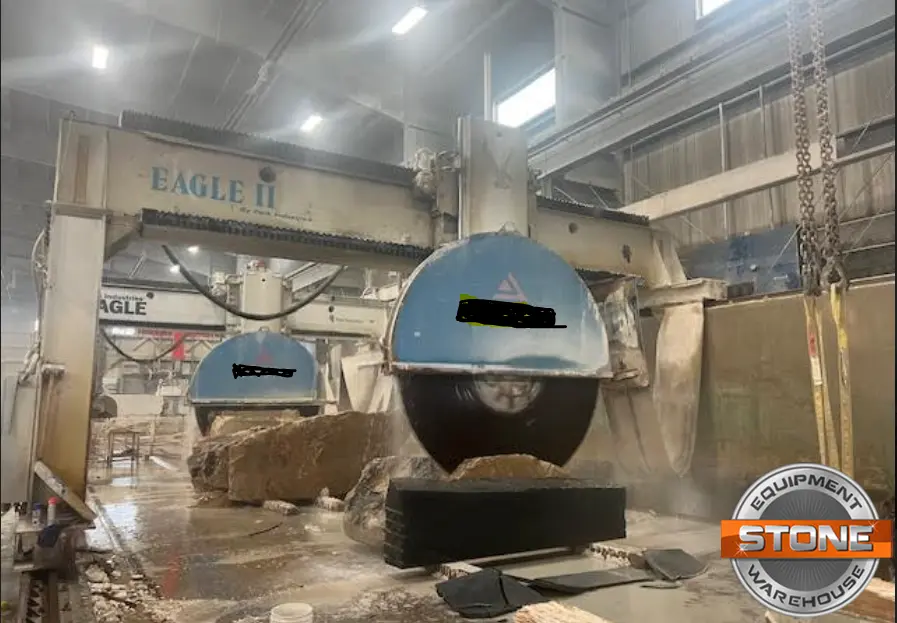

IMG_8802 (1)

In the last 3 months they have replaced
The arbor motor
Arbor
New blade core – (just put on last week)
Replaced all rise and fall and traverse bearings

Blade drive motor: 75 HP
11'6" blade, 16 Inch arbor flange, 60" sawing depth
Saw bridge travels on gantry tracks when moving from cut to cut
Blade and arbor move up and down when indexing through cut
Blade on right as viewed by operator
Automatic cut direction: selectable by the operator
Blade drive motor starter: soft start
Arbor drive bearings: opposed tapered roller bearings
Blade drive system: single belt/gearbox reduction
Raise and lower travel distance: 64"
Raise and lower bearing system: dual round linear ways with precision slide bearings
Raise and lower drive: brake motor with speed reducer and enclosed ball screw
Rise & Fall travel speed: 70 IPM (maximum)
Cross travel stroke: 14'- 10" maximum
Cross travel bearing/guidance system: dual round linear ways with precision slide bearings
Cross travel speed: 1.5 - 40 FPM
Cross travel drive: variable speed AC motor, speed reducer, heavy duty inverted rack and pinion
Gantry travel length: 18'
Gantry track length: 30'
Gantry travel bearing/guidance: hardened double flanged wheels riding on machined steel track
Gantry travel drive: variable speed dual drive motor with speed reducers driving rack and pinion, brakes on both sides
Gantry travel system: high-low tracks: customer supplies gantry foundation per Park Industries? specifications
Gantry travel speed: 1.5 - 30 FPM
Bridge construction: heavy duty steel weldment, stress relieved and precision machined
Power and water distribution system along bridge: center drop
Water distribution system to blade: water forks
Water control system: heavy duty steel blade shroud
Laser light mounted on bridge
Weight: 45,000 lbs.

Control Package:
Programmable for automatic operation
Automatic step cut with final pass
Digital input of variable next cut locations with kerf adder
-1/2" monochrome touch screen for all powered movements
Main motor amp meter with overamp safety
Amp Following
Water flow safety
Water control solenoid
Hour meter with clock
High block sensor
Low RPM sensor
Remote dial-up serviceability
Programmable maintenance message display

Specifications were taken from the manufacturer's web site for a 2012 model and cannot be guaranteed and need to be confirmed by buyer prior to purchase.








Machine is available for inspection
Machine is sold as is/where is and implies no warranty
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon request)
Machine is subject to prior sale
