2020 StoneProTech SPT-03 In-Line Edge Polishing Center

Description

Sales Representative Name: Justin Luth
Phone Number: 855-456-2588 EXT. 1004
Category: Edge Polishers
Year: 2020
Make: StoneProTech
Model: SPT-03
Under Power: Yes
Voltage:
Location: Maryland
Asking Price: $45,000.00
FINANCING AVAILABLE FROM 12 TO 60 MONTHS - ONE PAGE APPLICATION & 3 MONTHS BUSINESS BANK STATEMENTS REQUIRED. CLICK ON FINANCING TAB ON HOME PAGE FOR FURTHER INFORMATION OR CALL US AT 855-456-2588

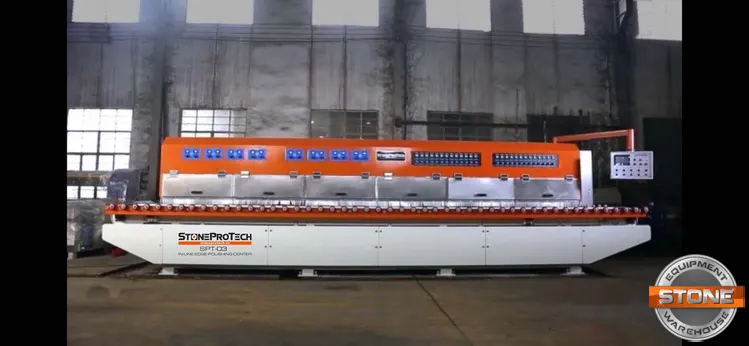

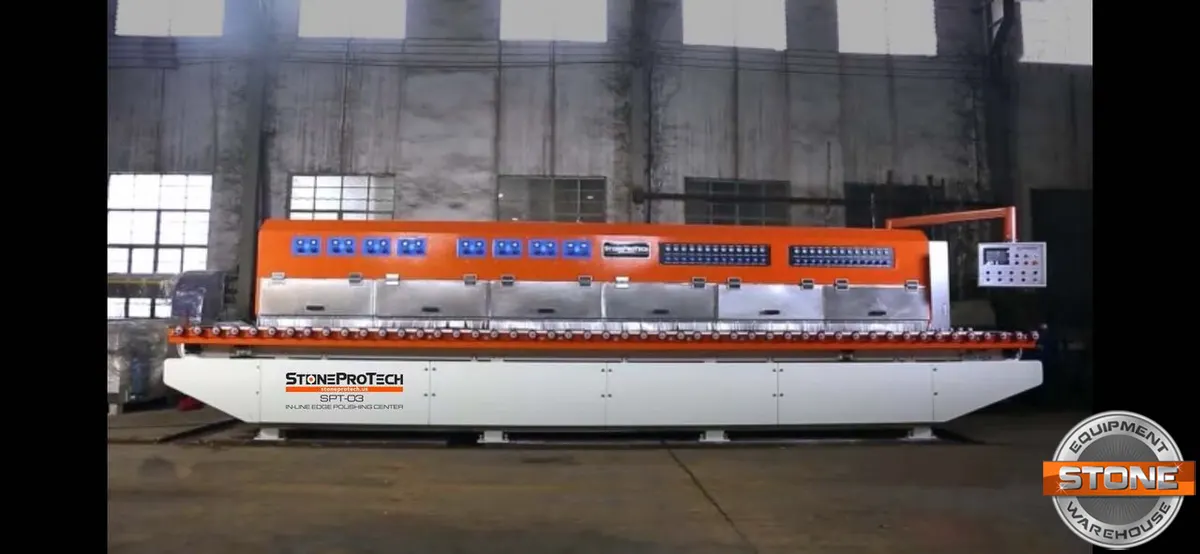

2020 StoneProTech SPT-03 In-Line Edge Polishing Center

This slightly used granite, marble and quartz edge polishing center is for sale due to the change of nature of business. It is perfect for mass production for multi family unit countertops, steps, thresholds, backsplashes, panels as well as regular residential countertop fabrication. etc with its up to 6 ft / min polishing speed rate. Machine is 3 years old and warranty has expired but factory support and spare part supply are always available.
This machine is able to perform true round eased and beveled edges. Because of its individual and powerful pneumatic press rollers. The machine is able to process from 4" wide backsplashes while the competitors can only polish 6-8" min width. With the extendable roller bar, you can polish up to 120" wide materials. Here how it processes the stone once material is placed on the conveyor.
- Multi purpose blade cleans the edge if there is any imperfection due to cutting. You can also perform mitered edge cuts and notch cuts since this is an adjustable blade.
- 8 heads straight edge polishing system provides the glossiest finish for your granite, marble, quartz and any kind of natural and engineered stones.
- There is a calibrator grinder after the polisher heads in case the material is not consistent in the thickness.
- After calibrating, there is a beveler and polisher head system for the bottom corner of the edge.
- As the final step, there is a 6 head swinging polishing head system to finish the top corner of edge to provide the perfect round corner.
As a result, you will get a super glossy and perfect eased round top cornered edge.
Additionally, there are 2 tons water tank and pump system included to feed the machine in case your existing water feed is not enough.
Technical Specs
- 1 head multi purpose cutting blade w/250-350 mm diameter blade size and 5.5 kW motor
- 8 heads straight polish section w/ 125mm pad diameter size and 4 x 1.5 kw = 6kW motors
- 1 head 45 degree bottom chamfering grinder w/ 150mm diamond glass wheel and 3 kW motor
- 2 heads 45 degree bottom polishing pads w/ 125mm pad diameter and 2 x1.5 kw = 3 kW motors
- 6 heads swinging top polishing heads w/ 125mm polishing pads and 1.5 kw x 3 = 4.5 kW motors
- Conveyor belt w/ two polar work gear box and 2.2 kW motor
- 2 pieces of 120" x 30" roller bench for easy material feeding and removal.
- Material working width: 4" tp 60" (4" to 120" with axulity hand support during process)
- Material working thickness: 10mm to 60 mm
- Working speed: 0 to 6 ft / min
- Total weight: 6.5 tons
- Overall dimensions of machine: 244" (width) x 63" (height) x 67" (depth)
- Overall dimensions with roller benches attached: 480" (width) x 63" (height) x 67" (depth)

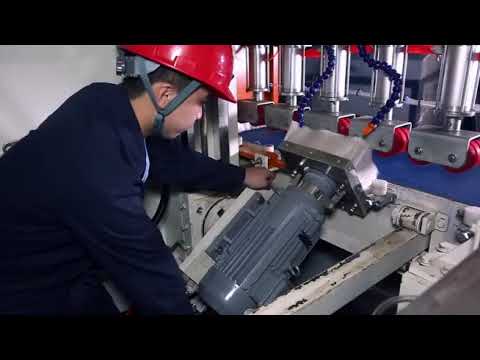

*Video of machine in operation*
826 (1)
Machine is available for inspection if necessary.
Machine will be sold as is / where is and implies no warranties.
Buyer responsible for tear down, rigging, freight and installation.
Subject to prior sale.
