Sales Representative Name: Justin Luth
Phone Number: 855-456-2588 EXT. 1004
Category: CNC Stone Centers
Year: 2016
Make: Aitalmac
Model: KT 32
Under Power: Yes
Voltage:
Location: New Jersey
Asking Price: $20,000.00
FINANCING AVAILABLE FROM 12 TO 60 MONTHS - ONE PAGE APPLICATION & 3 MONTHS BUSINESS BANK STATEMENTS REQUIRED. CLICK ON FINANCING TAB ON HOME PAGE FOR FURTHER INFORMATION OR CALL US AT 855-456-2588 2016 Aitalmac KT 32

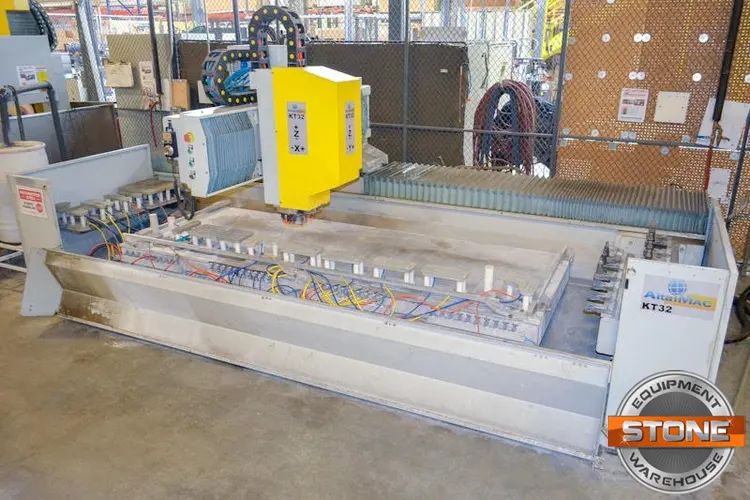

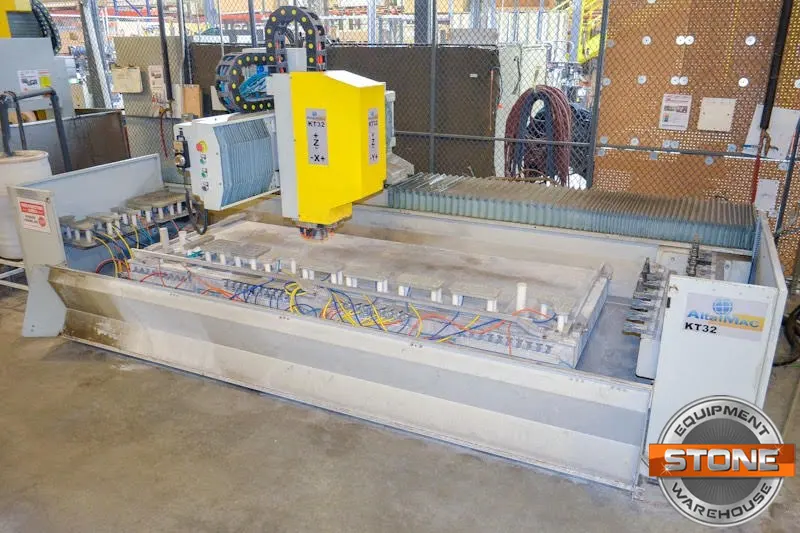

This machine is a very powerful 3 Axis CNC, able to cut and polish any kind of sink cutout.
It has an extremely easy to use interface, realized to facilitate the interaction between operator and machine, especially thought for kitchen sink cutout, it can import and work with DXF (AutoCAD) files and “G-code” ( RS-274 machine tool programming language) the interface among other things allow the user to set 2 combined tools one over the other , it also automatically calculate the tool wear and increment accordingly the tools trajectory. The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by AC servo motors through ball screws.
The spindle motor has a power of 9kW and controlled speed from 1500 to 9000(14000 RPM, the machine is provided with 15 automatic tool change stations, which use ISO/BT40 cones.
Overall dimensions
4800×2235×2250 mm/189×88×88.5 in
Total weight
3200 kg / 7100 lbs
Max. Install power
20kW
Linear axis travel (X-Y-Z)
3200-1100-320 mm/126-43-12.6 in
Max linear speed (X-Y-Z)
40-20-8m/min / 130-65-26 ft/min
Max. spindle nose to table
390 mm/15 in
Electric spindle power
13 kW
Maximum spindle rotation
9000 RPM
Maximum tool diameter
100 mm/4 in
Tool holder cone
Cone ISO 40
Automatic tool change stations
14
Vacuum pump motor power
1.5 kW
Vaccum pump capacity
0.45 m³/min
Air pressure required
7 bar
Water consumption
20~50 l/min / 5~13 gal/min
Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon Request)
Machine is subject to prior sale
