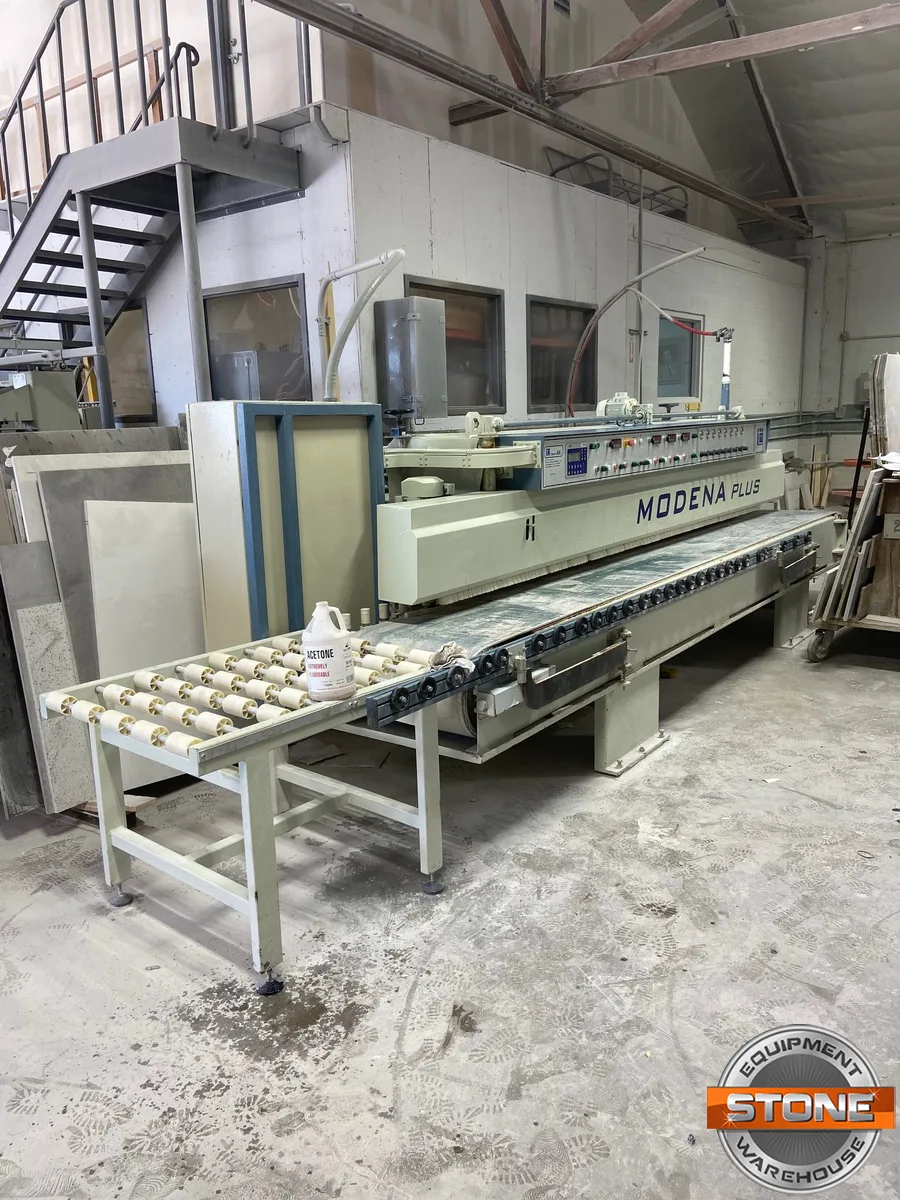

2008 Tecno MBM Modena Plus

Description

Sales Representative Name: Justin Luth
Phone Number: 855-456-2588 EXT. 1004
Category: Back Splash Polishers

Year: 2008
Make: Tecno MBM
Model: Modena Plus
Under Power: No
Voltage: 400v
Location: California
Asking Price: $26,500.00
FINANCING AVAILABLE FROM 12 TO 60 MONTHS - ONE PAGE APPLICATION & 3 MONTHS BUSINESS BANK STATEMENTS REQUIRED.  CLICK ON FINANCING TAB ON HOME PAGE FOR FURTHER INFORMATION OR CALL US AT 855-456-2588 2008 Tecno MBM Modena Plus
LUCIDACOSTE MODENA
The MODENA flat edge polishing machine has been produced and designed for calibrating, polishing of flat edges and 45° chamfering, on marble, granite, natural and artificial stones. As optional is available a cutting unit. Heavy steel composed structures are the main frame of the machine. The perfectly plane sliding surfaces allows the flatness forwarding of the material and assure a perfect working on very log pieces, too. The working process is possible without the use of extra guiding bars thanks to a guided belt, both on the sliding surface and on the rolls. The flexibility to adapt the machine for different materials characteristic is guaranteed by the control of every single head. The pneumatic counterpressure system on the upper chamfer heads, makes the adjustment of the chamfer size very accurate, and excludes any unwanted intervention of the head. The 5.5 kW calibrating unit, allows also the raw working of different edge shapes with the use of shaped tool.
MACHINE MANAGEMENT: The machine is managed with an interface keyboard with digital display with the following function: in and out control of the single heads from the material; exclusion of the single heads from the automatic cycle; belt speed display in m/1’; material length display in mm.
Heavy steel structure – Milled steel working table – PVC conveyor belt with prismatic guide – Belt movement is made by a 0,75 kW gearmotor electronic controlled by inverter which allows to adjust the speed - Digital reading of belt speed on the control panel - Vertical bar which holds the piece during working, with rolls and electric ascent and descent – Manually adjustable horizontal bar whit rolls for long pieces support - Pneumatic abrasive holders Ø150/130 mm for straight edge polishing and 45° opposite bevels, each with kW 1,5 motor - kW 5,5 calibrating motor unit – Optional cutting unit with kW 4 motor - Water and pneumatic independent systems every unit - Electric system in conformity with the international "CE" safety standards with automatic working cycle controlled by electronic programmer – Integrated waste water collecting tank.
Working way upon request.
TECHNICAL FEATURES
Number of polishing head for flat edge:​​from 4 to 8
Number of polishing head for upper and lower chamfer:​​from 1+1 to 2+2
Working thickness:​​from 20 mm to 80 mm
Minimum working width:​​270 mm.
Minimum working length:​​410 mm.
Head motor power:​​1.5 kW
Calibrating motor power:​​5.5 kW
Cutting unit motor power:​​4 kW
Pressing bar motor power:​​0.55 kW
Belt motor power:​​0.7 kW
Standard voltage and cycles:​​400 V / 50 Hz
Water consumption each head​​6 L/min.
OVERALL DIMENSIONS
Length​​: 5300 mm.
Width​​: 1700 mm.
Height​​: 1800 mm.
Total weight:​​ 4000 kg.
Height from floor to belt surface:​​820 mm.

*Specs taken from manufacturers website, information to be verified by buyer*



Machine is available for inspection
Machine is sold as is/where is and implies no warranties
Buyer is responsible for tear down, rigging, shipping, and installation (quote can be provided upon Request)
Machine is subject to prior sale
