Sales Representative Name: Justin Luth
Phone Number: 855-456-2588 EXT. 1004

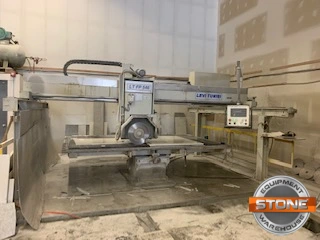

Category: Bridge Saws
Year: 2005
Make: Levi Tunisi
Model: LT FP 546
Under Power: No
Voltage:
Location: British Columbia, Canada
Asking Price: $15,000.00
FINANCING AVAILABLE FROM 12 TO 60 MONTHS - ONE PAGE APPLICATION & 3 MONTHS BUSINESS BANK STATEMENTS REQUIRED. CLICK ON FINANCING TAB ON HOME PAGE FOR FURTHER INFORMATION OR CALL US AT 855-456-2588 2005 Levi Tunisi LT FP 546
Y-Axis Bridge Movement 136"
Z-Axis Vertical Stroke 14"
Max. Disc Diameter 20"
Disc Hole Diameter 2"
Max. Cutting Height with 0.625 mm 7.6"
Disc Motor Power 20 HP
Head Gear Motor Power 1 HP
Bridge Gear Motor Power .5 HP
Slide for Step Cut Gear Motor Power .75 HP
Total Power 23 HP
Tension / Frequency 200 V 3PH 60 Hz
Table Dimensions 132" x 72"
Machine Dimensions 212" x 168" x 98"
Weight 8,818 lbs.
Equipped With:
Variable Speed Carriage and Cross Travel, Auto Cut Programmer, Electro Water Valve, Laser System 20mw, Movable Control Arm, Inclined Step Cut up to 45 Degrees, Blade Miter 0-90 Degrees, Hydraulic Tilting Turn Table with Pneumatic and Manual Locking.
Disclaimer: All the information needs to be verified by buyer
Machine is available for inspection
Machine is sold as is/where is and implies no warranty by global equipment group
Buyer is responsible for tear down, rigging, shipping, and installation
Machine is subject to prior sale.
