Sales Representative Name: Justin Luth
Phone Number: 855-456-2588 EXT. 1002
Category: Edge Polishers
Year: 2009
Make: Marmo Meccanica
Model: LTT-621
Under Power: Yes
Voltage: 220v 3ph
Location: Pacific West
Asking Price: $70,000.00
FINANCING AVAILABLE FROM 12 TO 60 MONTHS - ONE PAGE APPLICATION & 3 MONTHS BUSINESS BANK STATEMENTS REQUIRED. CLICK ON FINANCING TAB ON HOME PAGE FOR FURTHER INFORMATION OR CALL US AT 855-456-2588 Manufactured in Sept 2009.
Can polish or hone, flat edge, bullnose and bevel.
3,034 Hrs on it.
*Video Upon Request*
Specs Per Manufacturer

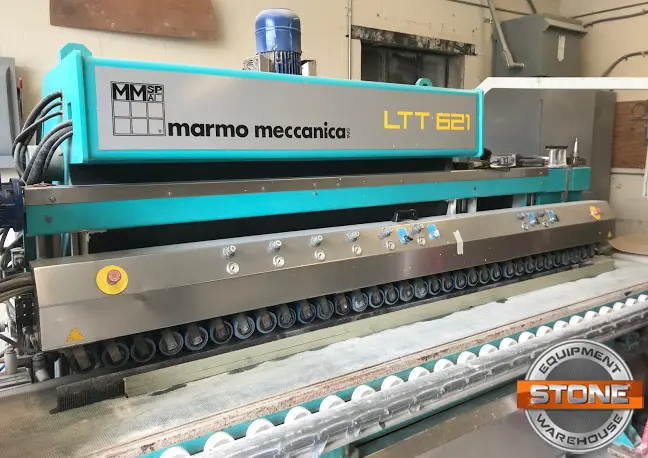

The LTT 621 is a continuous processing, polishing machine for rounded and flat edges up to 6 cm thickness. Much like the LTV its main features, there are: the compactness, the round shaping facility operated by means of just one cup-shaped diamond wheel for all radius, and the micro-oscillating facility of the polishing mandrels usable either for the flat edges, or for flat parts of edges (ex. between two rounded corners). The LTT is reliable because its most important mechanisms, such as the oscillating system are operated by means of levers and connecting rods and are basically derived from the thousands machines before like the LCT (vertical, extremely compact “bullnosing” machine) Marmo Meccanica has already produced. The compactness (only 14ft in length and 5ft in depth) in combination with its affordable price and its quality of performances make this machine ideal for those users looking for typical shop production. ADVANTAGES OF THE LTT 621: • Fully Automatic Horizontal Polisher• Production Speeds of up to 214 Lineal Feet per Hour• Processes pieces from 1-8 cm in thickness• 6 polishing heads allows for perfect polish every time• Automatically adjusts to find center of pieces for easy setup• Patented since 1985• Easy operation allows for fabricators ease of use and cross-training• Gauging plate included to gauge thickness of material and cut drip stones• 2 opposing mandrels set at 45° to help rough material into final shape• 2- 4ft extension tables and front extension allows for processing of large piecesSPECIFICATIONS OF THE LTT 621: • Number of Polishing Motors: 6• Number of Beveling Motors: 2• Number of gauging Motors: 1• Total Water Consumption: 15 gallons/minute• Total Power Requirement: 230v/3phase/100amps• Total Dimension of Machine: 14ft x 5ft x 6ft• Total Weight of Machine: 8,800lbs• Extension Tables: Standard 4ft in length• Working Speed: 23-214 Lineal feet per Hour• Maximum Abrasive Size: 5" or 150mm• Minimum material size: 8 inches x 10.6 inches• Maximum material size: NO MAXIMUM
Machine is available for inspection if neccessary.
Machine will be sold as is / where is and implies no warranties.
Buyer responsible for rigging, shipping and installation (quote can be provided upon request)
